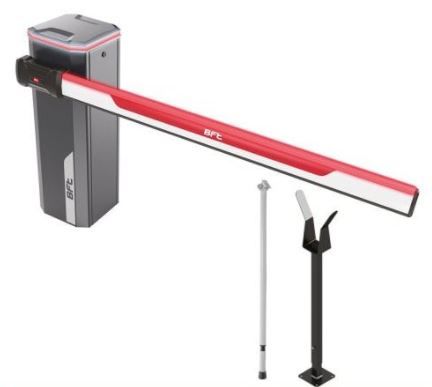

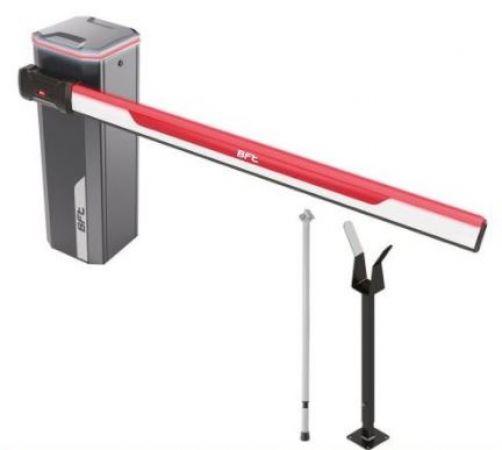

BFT Maxima Ultra 36 Automatic Traffic Barrier Kit with 5m Boom

Description

The BFT Maxima Ultra 36 is a high-performance automatic traffic barrier designed for intensive use at commercial and industrial entrances, car parks, distribution centres and other busy vehicle access points.

Supplied with a 5 metre aluminium boom, the Maxima Ultra 36 provides a robust solution for controlling vehicle access across wider entrances. Its electromechanical drive incorporates a three-phase asynchronous motor with an integrated inverter, allowing operation from a 230V single-phase mains supply.

The oil-bath gearbox and connecting rod-crank mechanism provide smooth, controlled movement, with adjustable opening and closing speeds and slowdown at the end of travel. The mechanical drive arrangement also offers protection against forced boom movement.

The integrated BFT CSB Xtreme control panel supports U-Link connectivity for integration with compatible access control and parking management systems. Encoder-based obstacle detection and self-diagnostic functions assist with safe operation and maintenance.

Designed for very intensive use, the Maxima Ultra 36 is suitable for demanding commercial installations where reliable, frequent barrier operation is required.

Key Specifications

• Manufacturer: BFT

• Model: Maxima Ultra 36

• Product Type: Automatic Traffic Barrier Kit

• Boom Length: 5 Metres

• Suitable Passage Width: Up to 5m, subject to installation configuration

• Power Supply: 230V AC Single Phase

• Motor Type: Three-Phase Asynchronous Motor with Inverter

• Motor Power: 250W

• Absorbed Power: 370W

• Operating System: Electromechanical

• Gearbox: Oil-Bath Lubrication

• Opening / Closing Time: 0.7–3.9 Seconds, Depending on Configuration

• Duty Rating: Very Intensive Use

• Control Unit: BFT CSB Xtreme

• Obstacle Detection: Encoder-Based

• Slowdown: Adjustable During Opening and Closing

• Anti-Vandal Protection: Connecting Rod-Crank Mechanism

• Locking: Mechanical

• Manual Release: Inside Barrier Cabinet

• Connectivity: BFT U-Link Compatible

• Protection Rating: IP55

• Operating Temperature: -40°C to +60°C, Subject to Operating Conditions

• Mean Cycles Between Failures (MCBF): 7,000,000 Movements

What's Included

• 1 x BFT Maxima Ultra 36 Automatic Barrier Operator

• Integrated CSB Xtreme Control Panel and Inverter

• 1 x 5m Aluminium Barrier Boom

• Boom Fixing Bracket

• Rubber Boom Buffer

Boom rests, swinging support legs, photocells, induction loops, radio transmitters, access control equipment and additional safety accessories are not included unless specified as part of the selected kit.

Installer Note

The BFT Maxima Ultra 36 is designed for high-frequency commercial applications and can accommodate a 5m boom with suitable balancing and support arrangements.

Although the barrier uses a three-phase motor, the integrated inverter allows it to operate from a standard 230V single-phase mains supply. A separate three-phase electrical supply is not required.

The correct balancing spring and boom support arrangement must be selected according to the boom length and any additional accessories fitted.

Installation requires a suitable concrete foundation, appropriate electrical protection, vehicle detection and safety devices selected following a site-specific risk assessment.

The manufacturer's operating speed range varies according to the boom length, balancing arrangement and programmed settings.
