Click Here To Enlarge This Photo Of BFT Maxima Ultra 68 230V Automatic Barrier – 4m to 8m

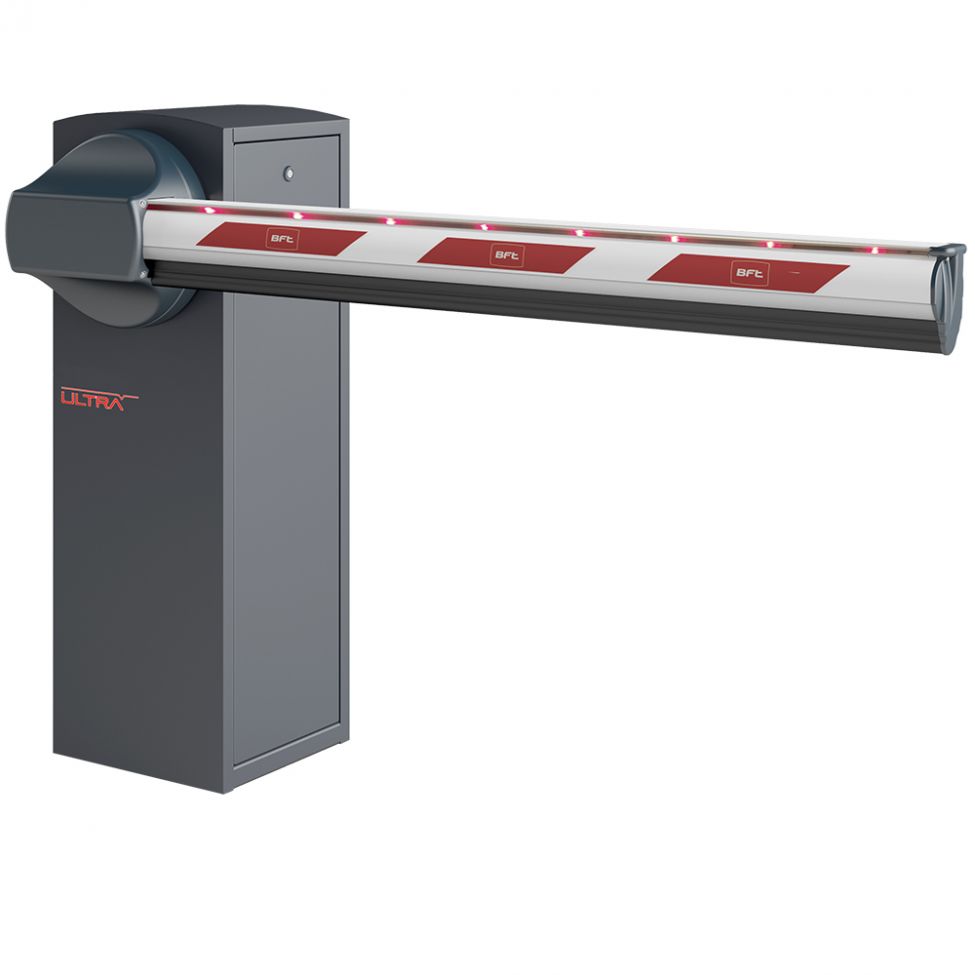

BFT Maxima Ultra 68 230V Automatic Barrier – 4m to 8m

Add To Favourites
BFT
£2,270.00 Ex. VAT(£2,724.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Maxima Ultra 68 is a heavy-duty 230V electromechanical automatic barrier designed for intensive commercial and industrial use, with a passage width of 4m to 8m.

Suitable for car parks, industrial premises, toll stations and high-traffic access points, the Maxima Ultra 68 is capable of up to 30,000 operations per day.

The barrier features a three-phase induction motor, oil-bath gearbox and mechanical locking system for reliable operation in demanding environments.

An integrated CSB Xtreme control panel provides encoder-based obstacle detection, adjustable slowdown during opening and closing, and compatibility with BFT's U-Link system for centralised access management.

Key Specifications

  • Manufacturer: BFT
  • Product: Maxima Ultra 68
  • Type: Electromechanical automatic barrier
  • Power Supply: 230V
  • Motor: Three-phase induction
  • Passage Width: 4m to 8m
  • Duty Cycle: Up to 30,000 operations per day
  • Opening/Closing Time: 4.5–6 seconds
  • Control Panel: CSB Xtreme
  • Gearbox: Oil-bath
  • Obstacle Detection: Encoder
  • Slowdown: Opening and closing
  • Locking: Mechanical
  • Manual Release: Internal
  • Operating Temperature: -30°C to +60°C
  • Protection Rating: IP54
  • MCBF: 2,000,000 operations
  • Connectivity: BFT U-Link compatible
  • Additional Features: Integrated heater

What's Included

  • BFT Maxima Ultra 68 barrier unit
  • Integrated CSB Xtreme control panel
  • Internal mechanical release system

Barrier boom, mounting accessories and additional safety devices should be selected according to the installation requirements.

Installer Note

The Maxima Ultra 68 is designed for high-frequency applications requiring a passage width of up to 8m. Boom length, balancing components and additional accessories must be selected to suit the installation.

The barrier includes encoder-based obstacle detection, but additional safety devices may be required following a site-specific risk assessment.

MPN:

Maxima Ultra 68

SKU:

Maxima Ultra 68
Specification
BrandBFT
SKUMaxima Ultra 68
ModelMaxima Ultra 68
Automation ForVehicle Barrier
Type of OperatorElectromechanical
Voltage230V
Warranty2 Years
