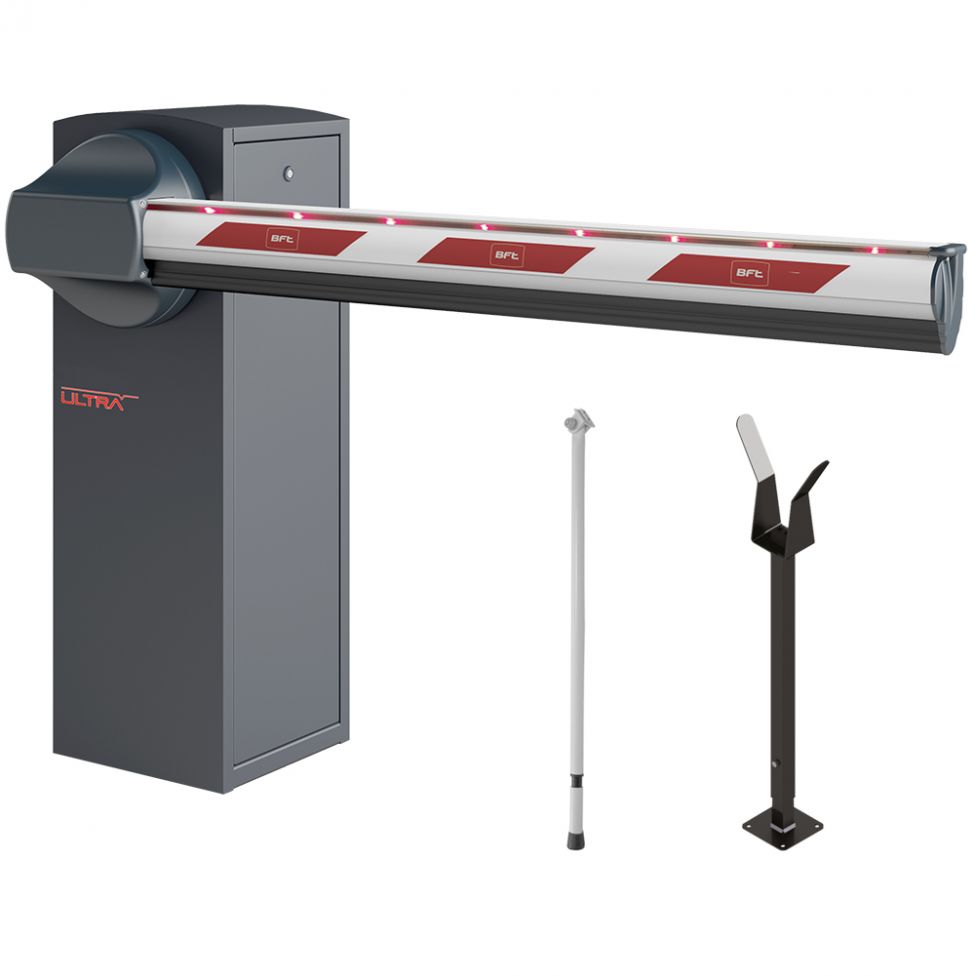

BFT Maxima Ultra 68 230V Automatic Barrier Kit with 6m Boom

Description

The BFT Maxima Ultra 68 is a heavy-duty 230V automatic barrier kit supplied with a 6m boom, designed for intensive use at commercial and industrial entrances.

Suitable for car parks, distribution centres, industrial premises and high-traffic access points, the Maxima Ultra 68 is capable of up to 30,000 operations per day.

The barrier features a three-phase induction motor, oil-bath gearbox and integrated CSB Xtreme control panel. Encoder-based obstacle detection, mechanical locking and controlled slowdown provide reliable operation, while BFT U-Link compatibility allows integration with centralised access management systems.

Key Specifications

• Manufacturer: BFT
• Model: Maxima Ultra 68
• Type: Electromechanical automatic barrier kit
• Power Supply: 230V
• Boom Length: 6m
• Barrier Range: 4m–8m
• Maximum Usage: 30,000 operations per day
• Opening/Closing Time: 4.5–6 seconds
• Motor Type: Three-phase induction
• Control Panel: CSB Xtreme
• Gearbox: Oil-bath
• Obstacle Detection: Encoder
• Locking: Mechanical
• Slowdown: Opening and closing
• Operating Temperature: -30°C to +60°C
• Protection Rating: IP54
• MCBF: 2,000,000 operations
• Connectivity: BFT U-Link compatible
• Additional Features: Integrated heater

What's Included

• 1 x BFT Maxima Ultra 68 barrier operator
• 1 x 6m barrier boom
• Integrated CSB Xtreme control panel

Additional balancing components, boom supports and safety accessories should be confirmed against the kit specification.

Installer Note

Designed for high-frequency commercial installations. Ensure the 6m boom is correctly balanced and suitable safety devices are installed following a site-specific risk assessment. The barrier supports BFT U-Link connectivity for integration with compatible access control systems.
