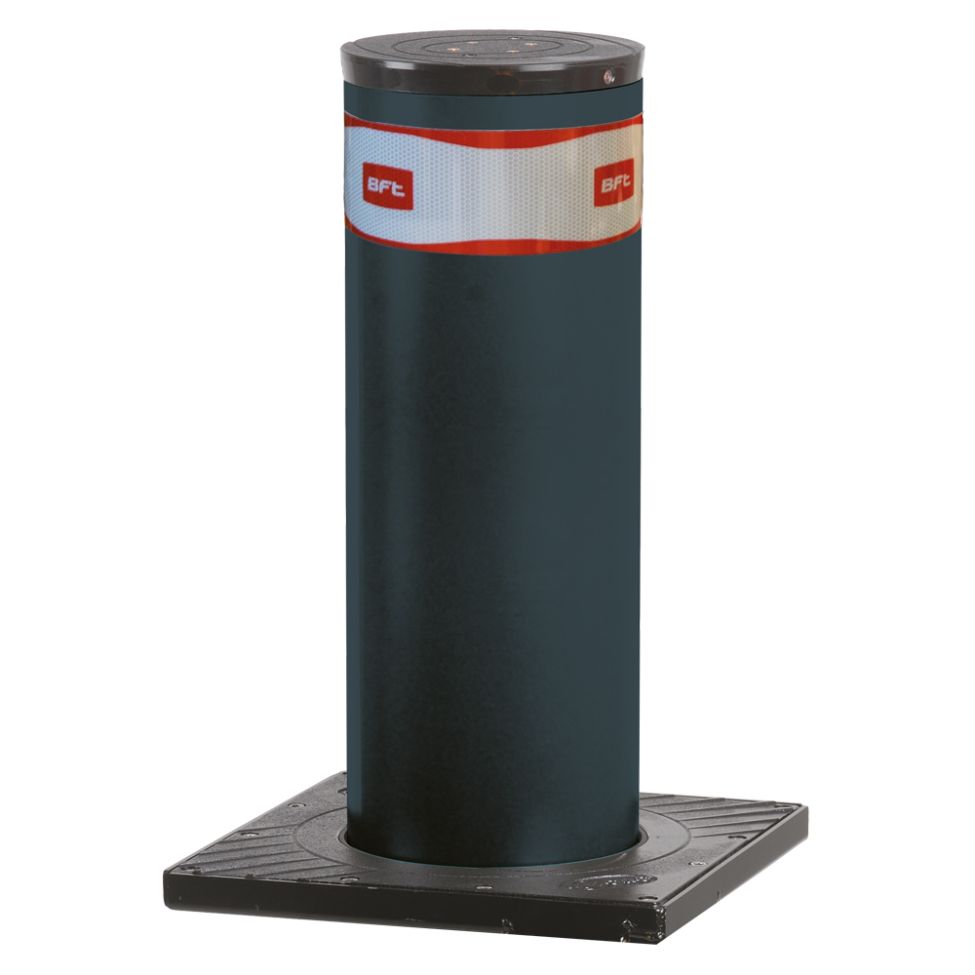

Click Here To Enlarge This Photo Of BFT Pillar B 600 x 275mm Hydraulic Rising Bollard with LED Lights – Fail Safe

BFT Pillar B 600 x 275mm Hydraulic Rising Bollard with LED Lights – Fail Safe

Add To Favourites
BFT
£3,705.82 Ex. VAT(£4,446.98 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Pillar B 600 is a heavy-duty automatic hydraulic rising bollard designed for controlling vehicle access at commercial premises, industrial sites, car parks and restricted entrances.

Featuring a 600mm rising height, 275mm nominal diameter and 6mm thick steel shaft, the Pillar B provides a robust solution for managing vehicle access. Finished in RAL 7015 painted steel, it incorporates an LED light crown and reflective strip to improve visibility to approaching drivers.

This is the fail-safe version, which automatically lowers in the event of a mains power failure, allowing vehicles to pass without manual intervention.

Designed for very intensive use, the Pillar B is rated for up to 3,000 operations per day, with a raising time of approximately 5 seconds. The hydraulic pump is positioned beneath the top flange, allowing easier access during servicing and maintenance.

The bollard operates with a compatible BFT PERSEO control unit and is suitable for individual installations or multiple-bollard vehicle access systems.

Key Specifications

  • Manufacturer: BFT

  • Model: PILLAR B 275/600.6C L

  • Manufacturer Part Number: P970092 00001

  • Product Type: Automatic Hydraulic Rising Bollard

  • Rising Height: 600mm

  • Shaft Diameter: 275mm nominal (273mm technical dimension)

  • Shaft Thickness: 6mm

  • Material: Steel

  • Finish: Painted Steel, RAL 7015

  • Power Supply: 230V AC

  • Raising Time: Approximately 5 Seconds

  • Operating System: Hydraulic

  • Duty Rating: Very Intensive Use

  • Maximum Operating Frequency: 3,000 Operations per Day

  • Impact Resistance: 20,000 Joules

  • Breaking Resistance: 250,000 Joules

  • Control Unit: BFT PERSEO CBD

  • Limit Switch: Reed Magnetic Sensor

  • Protection Rating: IP67

  • Operating Temperature: -40°C to +60°C

  • Integrated Lighting: LED Light Crown

  • Reflective Strip: 100mm

  • Power Failure Operation: Fail Safe – Automatically Lowers

What's Included

  • 1 x BFT Pillar B 600 x 275mm Hydraulic Rising Bollard (P970092 00001)

  • Integrated Hydraulic Drive Assembly

  • Integrated LED Light Crown

  • 100mm Reflective Strip

  • Foundation Box

The external PERSEO control unit, photocells, vehicle detection equipment, access control devices and other installation accessories are not included.

Installer Note

This is the standard 6mm painted steel fail-safe version of the BFT Pillar B 600.

Unlike the fail-secure (SD) version, which maintains the vehicle restriction during a power failure, this model automatically lowers to allow vehicle passage.

The bollard requires a suitable below-ground concrete foundation, drainage provision and a compatible BFT PERSEO control unit.

The published impact resistance of 20,000J and breaking resistance of 250,000J are manufacturer specifications and should not be interpreted as independent crash-test certification.

Installation must include appropriate safety devices, vehicle detection and a site-specific risk assessment.

MPN:

PILLAR B 600 x 275 C/W LIGHTS

SKU:

PILLAR B 600 x 275 C/W LIGHTS
Specification
BrandBFT
SKUPILLAR B 600 x 275 C/W LIGHTS
ModelPillar
Automation ForBollards
Type of OperatorHydraulic
Warranty2
