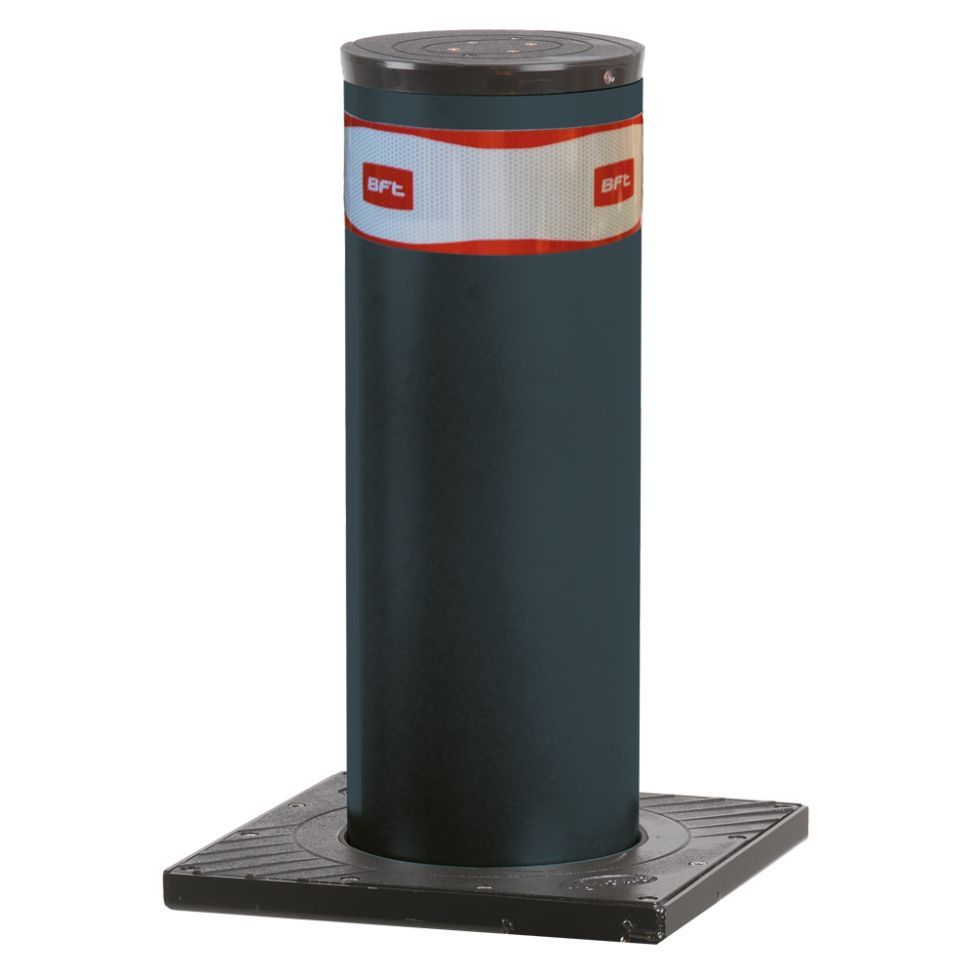

Click Here To Enlarge This Photo Of BFT Pillar B 800 x 275mm Hydraulic Rising Bollard – 10mm Skin, LED Lights, Fail Secure

BFT Pillar B 800 x 275mm Hydraulic Rising Bollard – 10mm Skin, LED Lights, Fail Secure

Add To Favourites
BFT
£4,658.51 Ex. VAT(£5,590.21 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Pillar B 800 is a heavy-duty automatic hydraulic rising bollard designed for high-security vehicle access control at commercial, industrial and restricted-access premises.

Featuring an 800mm rising height, 275mm diameter and reinforced 10mm thick steel shaft, this version offers increased resistance compared with the standard 6mm Pillar B. The bollard is finished in RAL 7015 painted steel and incorporates an LED light crown for improved visibility.

This is the fail-secure (SD) version, which remains raised in the event of a mains power failure, helping maintain vehicle access restrictions. The bollard can be lowered using its manual emergency release arrangement when required.

Designed for very intensive use, the Pillar B 800 operates hydraulically and supports up to 3,000 operations per day. Its hydraulic pump is positioned beneath the top flange to simplify access for servicing and maintenance.

The bollard operates with a compatible BFT PERSEO control unit and is suitable for individual installations or coordinated multiple-bollard systems.

Key Specifications

  • Manufacturer: BFT

  • Model: PILLAR B 275/800.10C L SD

  • Manufacturer Part Number: P970106 00003

  • Product Type: Automatic Hydraulic Rising Bollard

  • Rising Height: 800mm

  • Shaft Diameter: 275mm nominal

  • Shaft Thickness: 10mm

  • Material: Steel

  • Finish: Painted Steel, RAL 7015

  • Power Supply: 230V AC

  • Raising Time: Approximately 6.5 seconds

  • Operating System: Hydraulic

  • Duty Rating: Very Intensive Use

  • Maximum Operating Frequency: 3,000 operations per day

  • Breaking Resistance: 667,000 Joules

  • Control Unit: BFT PERSEO CBD

  • Limit Switch: Reed Magnetic Sensor

  • Protection Rating: IP67

  • Operating Temperature: -40°C to +60°C

  • Integrated Lighting: LED Light Crown

  • Power Failure Operation: Fail Secure – Remains Raised

  • Manual Operation: Emergency Release Key

Specifications checked against BFT's UK bollard brochure and model-specific product documentation.

BFT Automation UK
+2

What's Included

  • 1 x BFT Pillar B 800 x 275mm Hydraulic Rising Bollard – 10mm Steel Shaft (P970106 00003)

  • Integrated LED Light Crown

  • Hydraulic Drive Assembly

  • Foundation Box

The PERSEO control unit, external safety devices, access control equipment and associated installation accessories should be ordered separately.

Installer Note

This is the 10mm fail-secure version of the BFT Pillar B 800. Unlike the fail-safe model, which lowers automatically during a power failure, this version remains raised to maintain the vehicle restriction.

The bollard requires a suitable below-ground concrete foundation, drainage provision and a compatible BFT PERSEO control unit.

The reinforced 10mm shaft provides increased breaking resistance compared with the standard 6mm model. However, the published resistance figures should not be treated as confirmation of a particular crash-test certification without the relevant model-specific documentation.

Installation must include suitable safety devices, traffic management arrangements and a site-specific risk assessment. Particular consideration should be given to emergency access, as the bollard remains raised during a power failure.

MPN:

PILLAR B 800 x 275 C/W LIGHTS 10MM SKIN FAIL SECURE

SKU:

PILLAR B 800 x 275 C/W LIGHTS 10MM SKIN FAIL SECURE
Specification
BrandBFT
SKUPILLAR B 800 x 275 C/W LIGHTS 10MM SKIN FAIL SECURE
ModelPillar
Automation ForBollards
Type of OperatorHydraulic
Warranty2
