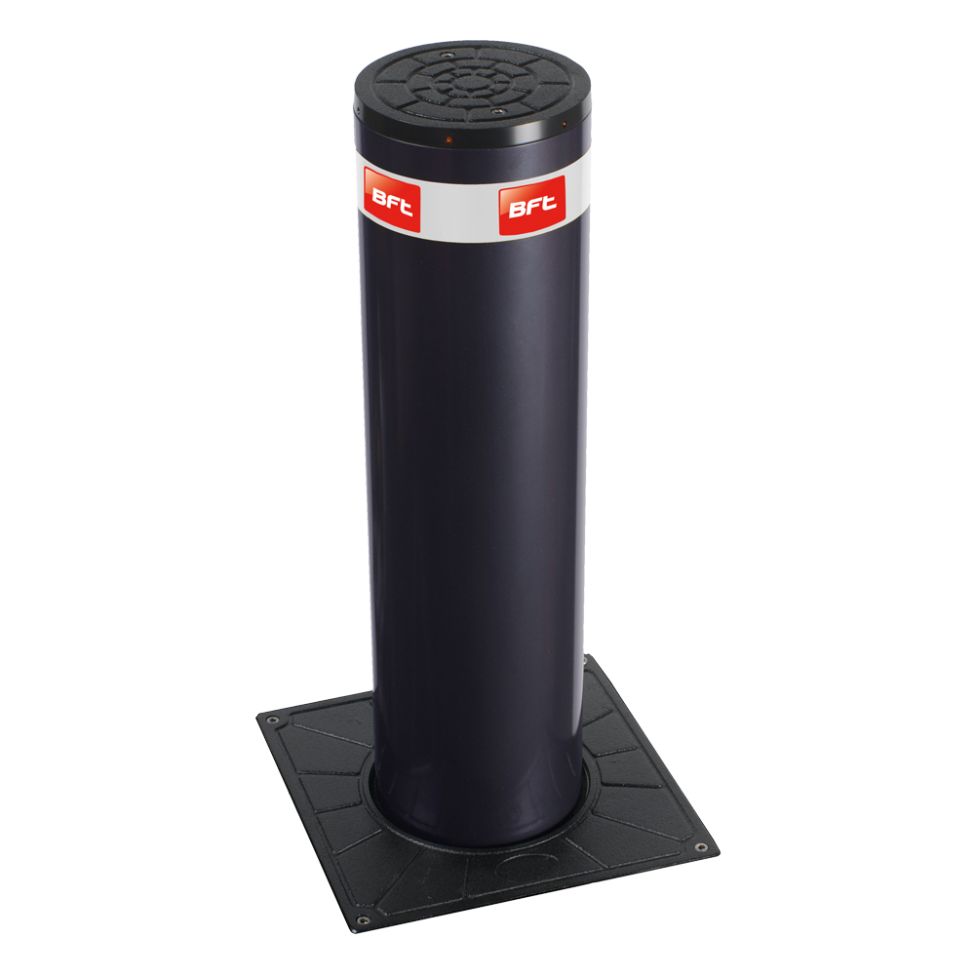

BFT Stoppy B 700 x 200mm Automatic Rising Bollard – Painted Steel

The BFT Stoppy B 700 is an automatic electromechanical rising bollard designed for vehicle access control at residential developments, apartment complexes, hotels, commercial premises and private car parks.

Featuring a 700mm rising height and 200mm nominal diameter, the Stoppy B provides a practical solution for restricting unauthorised vehicle access while allowing controlled entry when required.

The bollard is manufactured from steel with a RAL 7015 painted finish and incorporates an LED light crown and reflective strip for improved visibility. Its electromechanical drive operates with controlled slowdown during raising and lowering, helping provide smooth and reliable movement.

Designed for semi-intensive use, the Stoppy B 700 supports up to 500 operations per day, with a raising time of approximately 9 seconds.

The bollard operates with a compatible BFT PERSEO control unit and can be installed individually or as part of a multiple-bollard access control system.

Key Specifications

• Manufacturer: BFT

• Model: STOPPY B 200/700

• Manufacturer Part Number: P970089 00001

• Product Type: Automatic Electromechanical Rising Bollard

• Rising Height: 700mm

• Shaft Diameter: 200mm nominal (194mm actual)

• Shaft Thickness: 6mm

• Material: Steel

• Finish: Painted Steel, RAL 7015

• Power Supply: 230V AC, 50/60Hz

• Power Consumption: Approximately 200W

• Operating System: Electromechanical

• Raising Time: Approximately 9 Seconds

• Duty Rating: Semi-Intensive Use

• Maximum Operating Frequency: 500 Operations per Day

• Impact Resistance: 6,000 Joules

• Breaking Resistance: 60,000 Joules

• Braking System: Electric Brake

• Slowdown: During Raising and Lowering

• Limit Switch: Reed Magnetic Sensor

• Protection Rating: IP67

• Control Unit: BFT PERSEO CBD / Compatible PERSEO CBE

• Operating Temperature: -20°C to +60°C (standard configuration)

• Integrated Lighting: LED Light Crown

• Reflective Strip: 100mm

• Power Failure Operation: Reversible Without Power

What's Included

• 1 x BFT Stoppy B 700 x 200mm Painted Steel Rising Bollard (P970089 00001)

• Integrated Electromechanical Drive Assembly

• Integrated LED Light Crown

• Reflective Strip

The external PERSEO control unit, safety devices, vehicle detection equipment, access control devices and radio transmitters are not included.

Installer Note

The BFT Stoppy B 700 is designed for semi-intensive vehicle access applications and requires a compatible BFT PERSEO control unit.

The bollard is reversible without electrical power, allowing it to be lowered manually during a power failure. Automatic lowering should not be assumed without confirming the installed control configuration.

Installation requires a suitable below-ground concrete foundation, adequate drainage and appropriate electrical connections.

Safety equipment such as induction loops, photocells and traffic lights should be selected following a site-specific risk assessment.

The published impact and breaking resistance figures are manufacturer specifications and do not represent independent crash-test certification.
