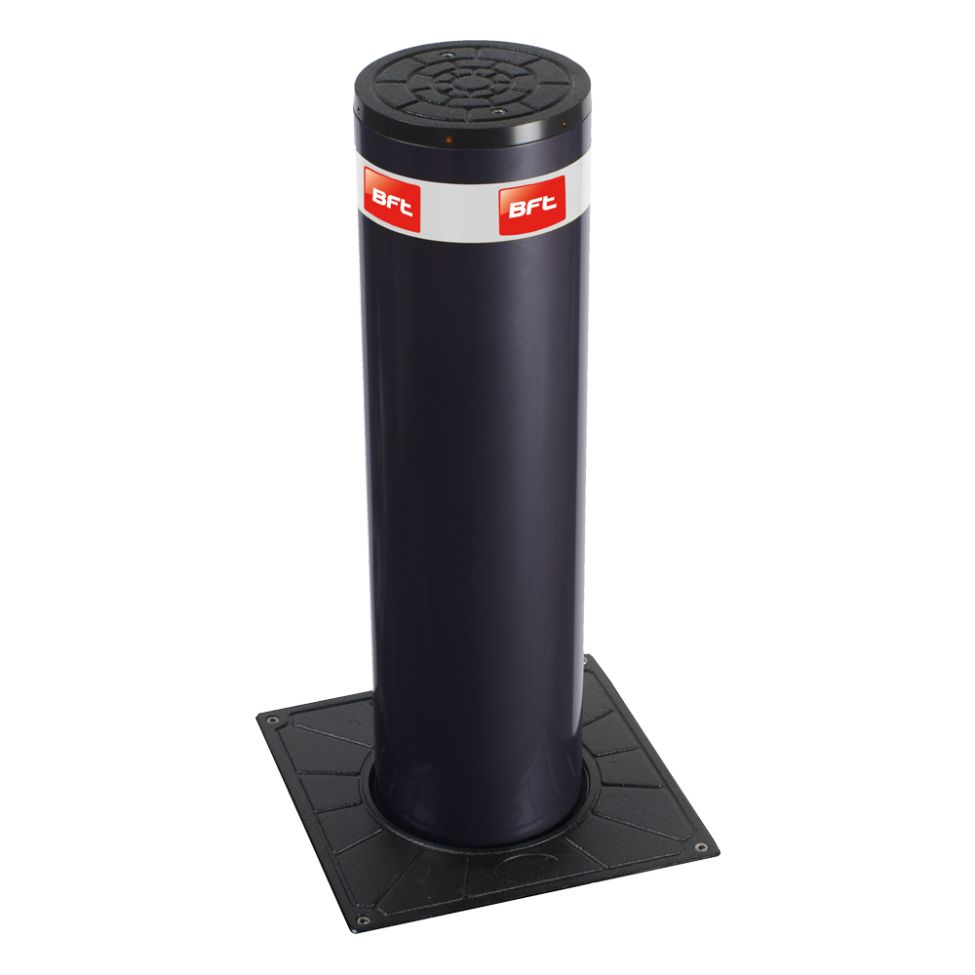

BFT Stoppy B 700 x 200mm Stainless Steel Automatic Rising Bollard

The BFT Stoppy B 700 is an automatic electromechanical rising bollard designed for controlled vehicle access at residential developments, commercial premises, private car parks and restricted entrances.

Featuring a 700mm rising height and 200mm nominal diameter, the Stoppy B provides a practical solution for managing vehicle entry and preventing unauthorised access. Its stainless steel finish offers a smart, durable appearance, making it particularly suitable for installations where both security and aesthetics are important.

The bollard incorporates an integrated LED light crown and reflective strip to improve visibility to approaching vehicles. Its electromechanical drive provides controlled raising and lowering, with slowdown at the end of travel.

Designed for semi-intensive use, the Stoppy B 700 supports up to 500 operations per day, with a raising time of approximately 9 seconds.

The bollard operates with a compatible BFT PERSEO control unit and can be installed individually or as part of a multiple-bollard access control system.

Key Specifications

• Manufacturer: BFT

• Model: STOPPY B 200/700 Stainless Steel

• Product Type: Automatic Electromechanical Rising Bollard

• Rising Height: 700mm

• Shaft Diameter: 200mm nominal (194mm actual)

• Material: Stainless Steel

• Finish: Stainless Steel

• Power Supply: 230V AC, 50/60Hz

• Power Consumption: 300W

• Operating System: Electromechanical

• Raising Time: Approximately 9 Seconds

• Duty Rating: Semi-Intensive Use

• Maximum Operating Frequency: 500 Operations per Day

• Impact Resistance: 6,000 Joules

• Braking System: Electric Brake

• Slowdown: During Raising and Lowering

• Limit Switch: Reed Magnetic Sensor

• Protection Rating: IP67

• Control Unit: BFT PERSEO CBD / Compatible PERSEO CBE

• Operating Temperature: -20°C to +60°C

• Integrated Lighting: LED Light Crown

• Reflective Strip: Included

• Power Failure Operation: Reversible Without Power

What's Included

• 1 x BFT Stoppy B 700 x 200mm Stainless Steel Automatic Rising Bollard

• Integrated Electromechanical Drive Assembly

• Integrated LED Light Crown

• Reflective Strip

The external PERSEO control unit, photocells, induction loops, access control equipment and radio transmitters are not included.

Installer Note

This is the stainless steel version of the BFT Stoppy B 700, offering the same operating characteristics as the standard painted steel model with an alternative finish.

The bollard requires a suitable below-ground concrete foundation, adequate drainage and a compatible BFT PERSEO control unit.

The Stoppy B is reversible without electrical power, allowing the bollard to be lowered in the event of a power failure. Automatic lowering should not be assumed without confirming the installed configuration.

A compatible PERSEO control panel can manage multiple bollards, making the Stoppy B suitable for wider entrances requiring several units operating together.

Appropriate safety devices, vehicle detection and a site-specific risk assessment are required. Manufacturer impact resistance figures should not be interpreted as independent crash-test certification.
