Click Here To Enlarge This Photo Of BFT SUB E 230V Underground Hydraulic Double Swing Gate Kit – 2.5m Per Leaf

BFT SUB E 230V Underground Hydraulic Double Swing Gate Kit – 2.5m Per Leaf

Add To Favourites
BFT
£1,618.23 Ex. VAT(£1,941.88 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB E Kit is a heavy-duty underground hydraulic gate automation system designed for double swing gates up to 2.5 metres wide and weighing up to 800kg per leaf. Suitable for residential, shared and commercial entrances, the SUB E is engineered for very intensive use.

The two 230V hydraulic operators are installed beneath the gate hinges, keeping the automation concealed and preserving the appearance of timber, steel and wrought iron gates. This makes the system particularly suitable for bespoke entrances where visible gate motors would detract from the design.

Unlike the standard BFT SUB, the SUB E features a reversible, non-locking hydraulic mechanism, allowing it to operate longer gate leaves. A separate electric lock is required to secure the gates when closed.

The operators incorporate hydraulic clutch adjustment for force regulation and provide an opening angle of up to 130°. With an approximate 17-second opening time through 90°, the SUB E offers controlled operation for entrances with regular vehicle movements.

Supplied with the BFT RIGEL 6 control panel, underground foundation boxes and radio accessories, the SUB E Double Kit provides a comprehensive hydraulic automation system for two swing gate leaves.

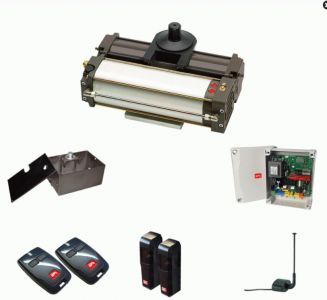

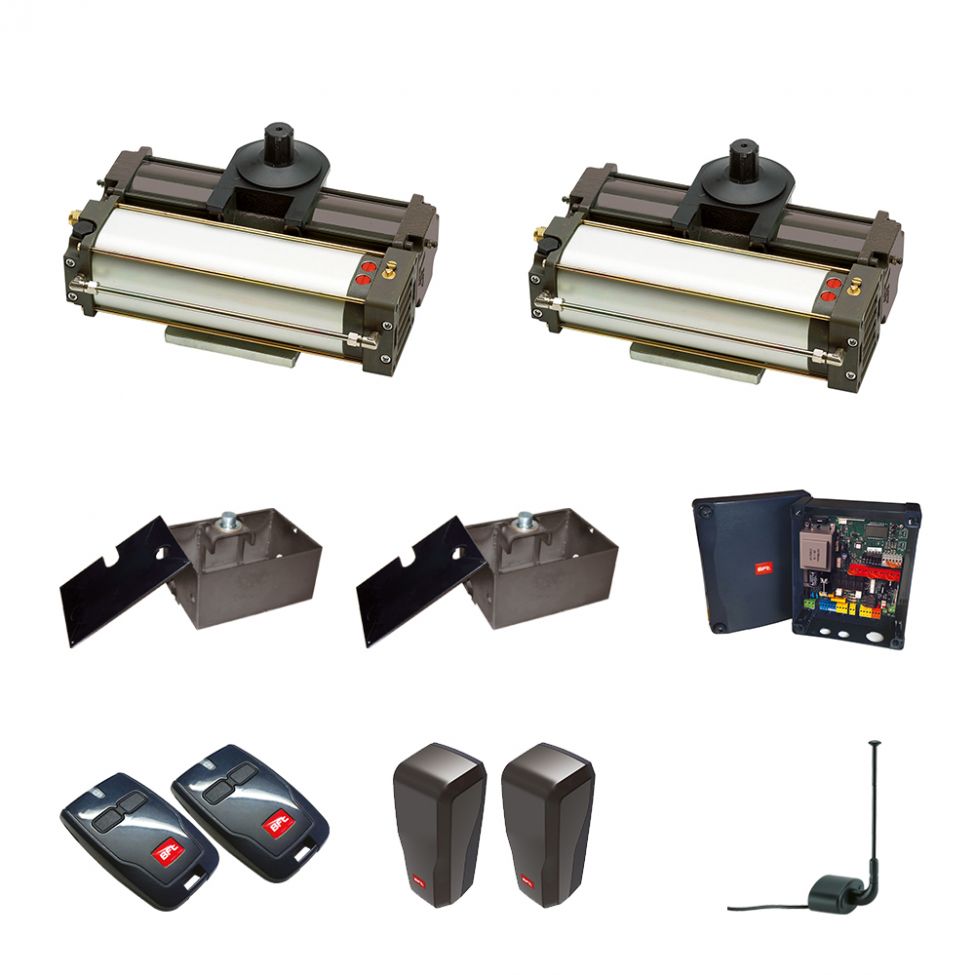

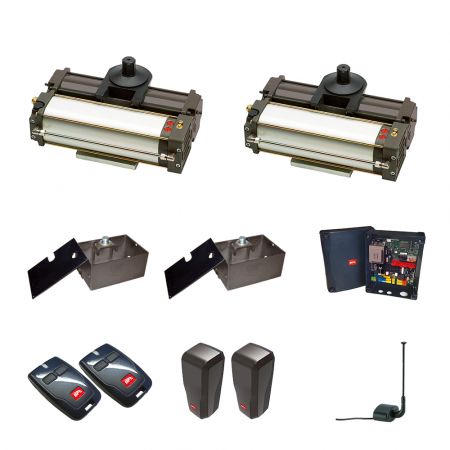

Kit Contents

  • 2 × BFT SUB E 230V Underground Hydraulic Operators

  • 2 × Heavy-Duty Underground Foundation Boxes

  • 1 × BFT RIGEL 6 Control Panel

  • 2 × BFT MITTO Two-Button Radio Transmitters

  • 1 Pair × BFT Safety Photocells

  • 1 × BFT Radio Antenna

Technical Specifications

  • Manufacturer: BFT

  • Model: SUB E

  • Kit Reference: SUB E Kit

  • Motor Voltage: 230V AC

  • Motor Type: Underground hydraulic

  • Maximum Gate Leaf Length: 2.5m

  • Maximum Gate Leaf Weight: 800kg

  • Maximum Opening Angle: 130°

  • Opening Time: Approximately 17 seconds through 90°

  • Hydraulic Locking: No – reversible operator

  • Force Adjustment: Hydraulic clutch

  • Operating Frequency: Very intensive use

  • Protection Rating: IP67

  • Operating Temperature: -10°C to +60°C

  • Control Panel: BFT RIGEL 6

  • Gate Configuration: Double swing gates

  • Installation: Underground

Useful Information

SUB vs SUB E: The standard SUB incorporates hydraulic locking and supports gate leaves up to 1.8m. The SUB E is non-locking and accommodates leaves up to 2.5m.

Electric Lock: The SUB E requires a separate electric lock to secure the gates when closed.

SUB E vs SUB ER: The SUB ER offers faster operation with hydraulic slowdown. The standard SUB E does not incorporate the ER model's slowdown function.

MPN:

SUB E Kit

SKU:

SUB E Kit
Specification
BrandBFT
SKUSUB E Kit
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)2.5m
Warranty2 Years
