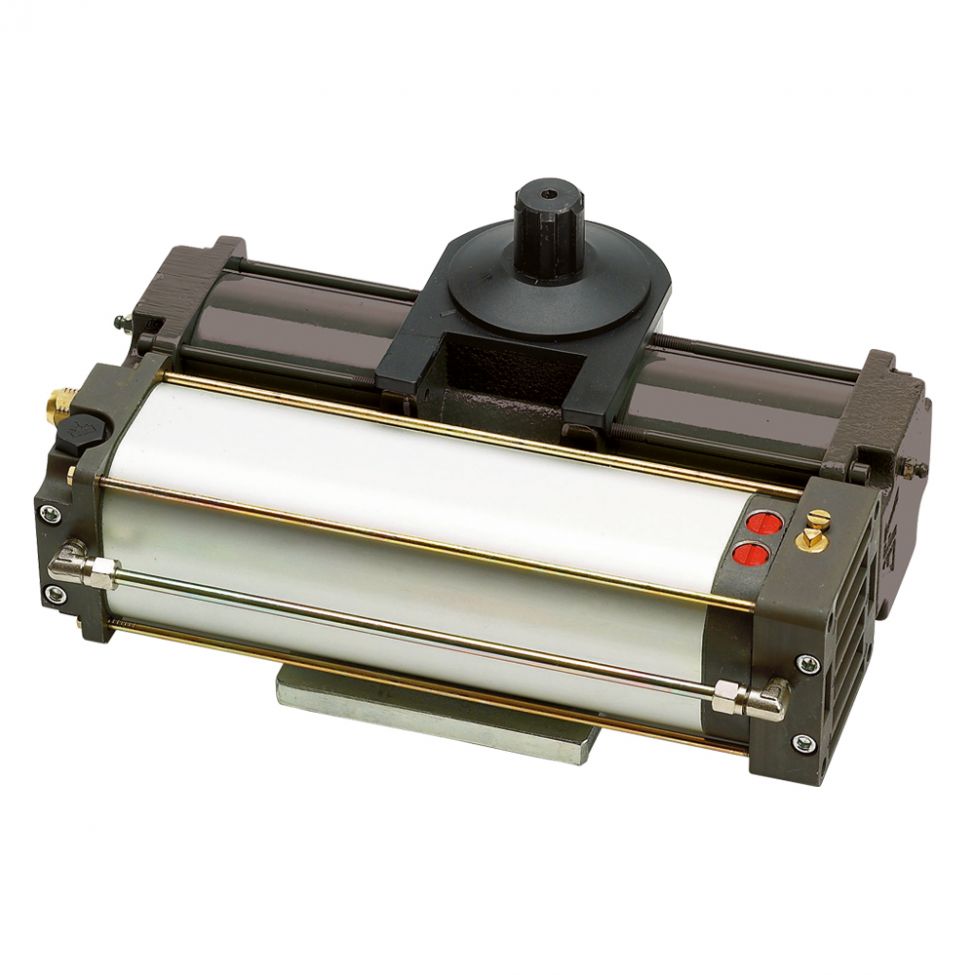

Click Here To Enlarge This Photo Of BFT SUB E 230V Hydraulic Underground Swing Gate Motor

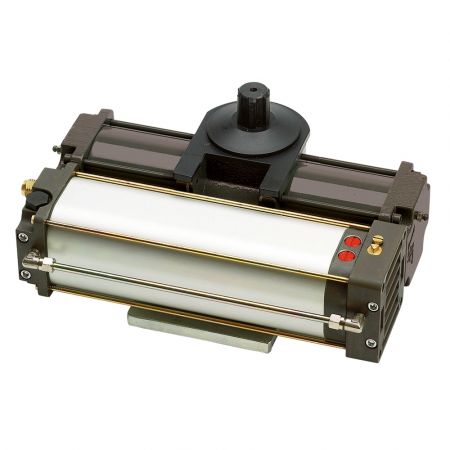

BFT SUB E 230V Hydraulic Underground Swing Gate Motor

Add To Favourites
BFT
£699.00 Ex. VAT(£838.80 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB E is a 230V hydraulic underground swing gate motor designed for very intensive use on residential, commercial and multi-residential entrances. Suitable for gate leaves up to 2.5 metres wide and weighing up to 800kg, it provides powerful, discreet automation for installations requiring reliable and frequent operation.

Installed beneath the gate, the SUB E keeps the automation concealed, preserving the appearance of the entrance. Its hydraulic drive system provides dependable movement, while the hydraulic clutch allows adjustment of the operating force.

Key Features

  • 230V hydraulic underground swing gate operator

  • Maximum gate leaf width: 2.5m

  • Maximum gate leaf weight: 800kg

  • Maximum opening angle: 130°

  • Non-locking hydraulic operation

  • Opening time through 90°: approximately 17 seconds

  • Designed for very intensive use

  • Hydraulic clutch for impact reaction

  • IP67 protection rating

  • Operating temperature: -10°C to +60°C

  • Compatible with BFT Rigel 6 control panel

Useful Information

The SUB E is suitable for larger gate leaves than the standard SUB model, which accommodates widths up to 1.8m. For installations requiring slowdown, the SUB ER is the corresponding alternative.

As the SUB E is a non-locking operator, a suitable electric lock may be required to secure the gate when closed.

Supplied as one hydraulic underground operator only. Foundation box, control panel and installation accessories are available separately.

MPN:

SUB E

SKU:

SUB E
Specification
BrandBFT
SKUSUB E
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Voltage230V
Max. Weight of Gate800KG
Max. Width of Gate (m)2.5m
Warranty2 Years
