BFT SUB G 230V Hydraulic Underground Single Swing Gate Automation Kit£1,086.99 Ex. VAT(£1,304.39 Inc. VAT)
(From 0 Reviews)
In Stock
(From 1 Reviews)
The BFT SUB G Double Kit is a 230V hydraulic underground swing gate automation system designed for very intensive use on residential, commercial and multi-residential entrances.
Suitable for double swing gates with leaves up to 1.8 metres wide and weighing up to 800kg each, the SUB G provides powerful, discreet automation with an opening angle of up to 180°.
The underground hydraulic operators remain concealed beneath the gates, preserving the appearance of the entrance. Hydraulic locking helps secure the gates when closed, while the hydraulic clutch provides adjustable operating force.
Key Features
2 × BFT SUB G 230V hydraulic underground operators
Maximum gate leaf width: 1.8m per leaf
Maximum gate leaf weight: 800kg per leaf
Maximum opening angle: 180°
Hydraulic locking
Opening time through 90°: 17 seconds
Designed for very intensive use
Hydraulic clutch impact reaction
IP67 motor protection rating
Compatible with BFT Rigel 6 control panel

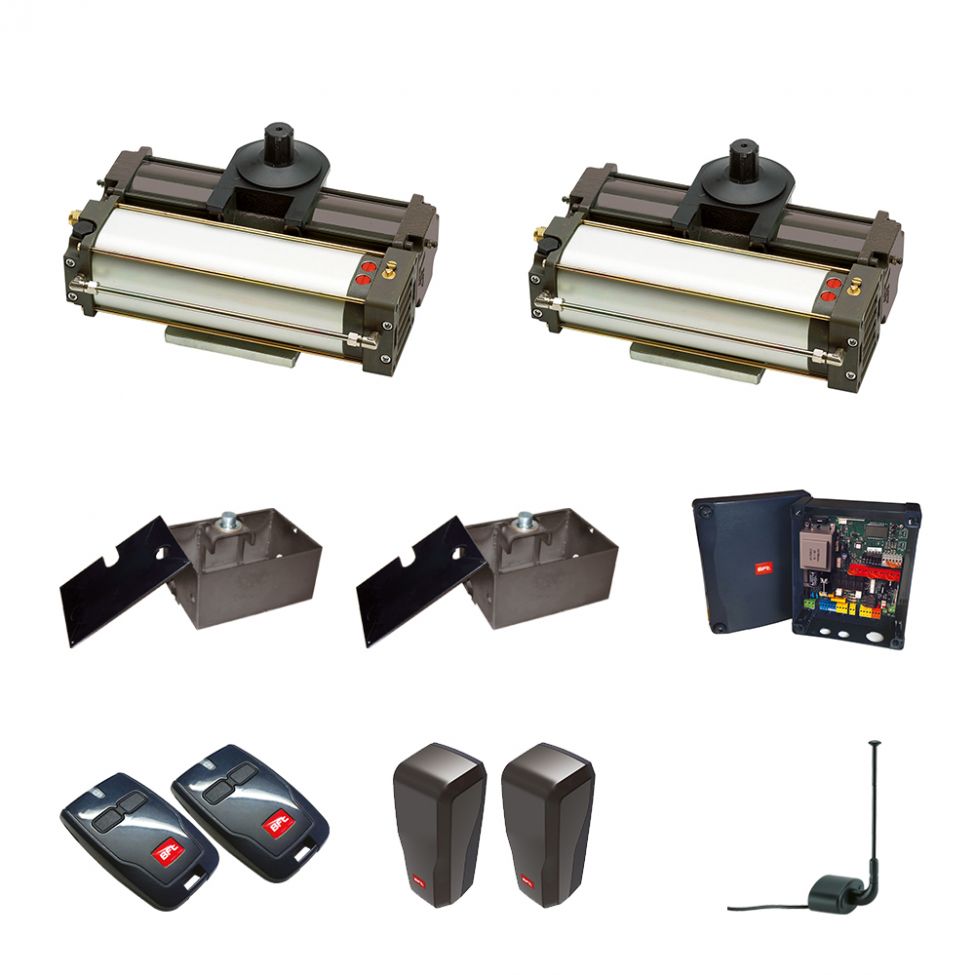

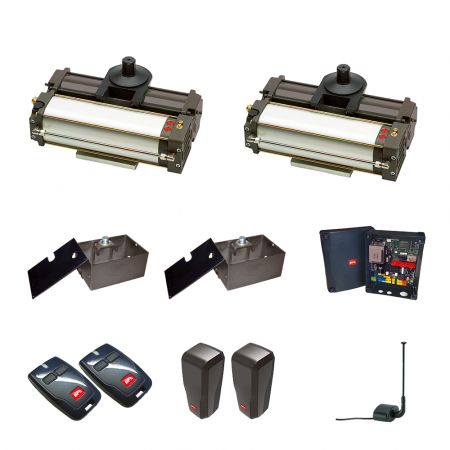

Kit Contents
2 × BFT SUB G hydraulic underground operators
2 × Heavy-duty 180° foundation boxes
1 × BFT Rigel 6 control panel with receiver
2 × BFT Mitto two-button transmitters
1 × Pair of BFT safety photocells
1 × BFT radio antenna
Useful Information
The SUB G provides 180° opening with hydraulic locking but does not incorporate slowdown. For installations requiring slowdown, the SUB GR Double Kit is the corresponding alternative.
| Brand | BFT |
|---|---|
| SKU | SUB G Kit |
| Model | Sub |
| Automation For | Swing Gate |
| Operator | Underground |
| Type of Operator | Hydraulic |
| Double / Single Kit | Double |
| Voltage | 230V |
| Max. Width of Gate (m) | 1.8m |
| Warranty | 2 Years |
