Click Here To Enlarge This Photo Of BFT SUB G 230V Hydraulic Underground Single Swing Gate Automation Kit

BFT SUB G 230V Hydraulic Underground Single Swing Gate Automation Kit

Add To Favourites
BFT
£1,086.99 Ex. VAT(£1,304.39 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB G Single Kit is a 230V hydraulic underground swing gate automation system designed for very intensive use on residential, commercial and multi-residential entrances.

Suitable for a single swing gate leaf up to 1.8 metres wide and weighing up to 800kg, the SUB G provides powerful, discreet automation with an opening angle of up to 180°.

The hydraulic operator is installed beneath the gate, keeping the automation concealed while delivering dependable performance. Hydraulic locking secures the gate when closed, making this kit suitable for demanding installations requiring frequent operation.

Key Features

  • BFT SUB G 230V hydraulic underground operator

  • Single-leaf swing gate automation

  • Maximum gate leaf width: 1.8m

  • Maximum gate leaf weight: 800kg

  • Maximum opening angle: 180°

  • Hydraulic locking

  • Opening time through 90°: 17 seconds

  • Designed for very intensive use

  • Hydraulic clutch impact reaction

  • IP67 motor protection rating

  • Operating temperature: -10°C to +60°C

  • Rigel 6 control panel

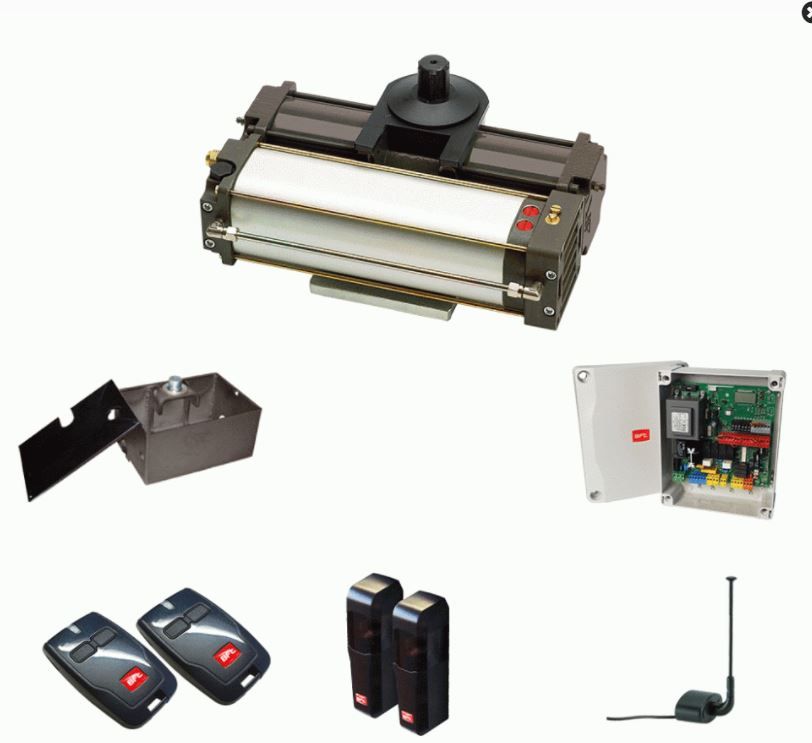

Kit Contents

  • 1 × BFT SUB G 230V hydraulic underground operator

  • 1 × BFT heavy-duty foundation box

  • 1 × BFT Rigel 6 control panel with receiver

  • 2 × BFT Mitto two-button radio transmitters

  • 1 × Pair of BFT Compacta safety photocells

  • 1 × BFT radio antenna

Useful Information

The SUB G provides 180° opening with hydraulic locking but does not incorporate slowdown. For installations requiring slowdown, the SUB GR Single Kit is the corresponding alternative.

This kit is designed for automating one swing gate leaf. Confirm the required left- or right-hand operator configuration before ordering.

MPN:

SUB G Single Kit

SKU:

SUB G Single Kit
Specification
BrandBFT
SKUSUB G Single Kit
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)1.8m
Warranty2 Years
