Click Here To Enlarge This Photo Of BFT SUB GR 230V Hydraulic Underground Double Swing Gate Automation Ki

BFT SUB GR 230V Hydraulic Underground Double Swing Gate Automation Ki

Add To Favourites
BFT
£1,938.34 Ex. VAT(£2,326.01 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB GR Double Kit is a 230V hydraulic underground swing gate automation system designed for very intensive use on residential, commercial and multi-residential entrances.

Suitable for pairs of swing gates with leaves up to 1.8 metres wide and weighing up to 800kg each, the SUB GR provides powerful, discreet automation with an opening angle of up to 180°.

The hydraulic operators feature integrated locking and slowdown for controlled gate movement. Installed beneath the gates, the motors remain concealed, making this kit ideal for entrances where appearance, reliability and frequent operation are important.

Key Features

  • BFT SUB GR double underground automation kit

  • 230V hydraulic underground operators

  • Maximum gate leaf width: 1.8m per leaf

  • Maximum gate leaf weight: 800kg per leaf

  • Maximum opening angle: 180°

  • Hydraulic locking

  • Integrated slowdown

  • Opening time through 90°: 10 seconds plus slowdown

  • Designed for very intensive use

  • Hydraulic clutch impact reaction

  • IP67 motor protection rating

  • Compatible with BFT Rigel 6 control panel

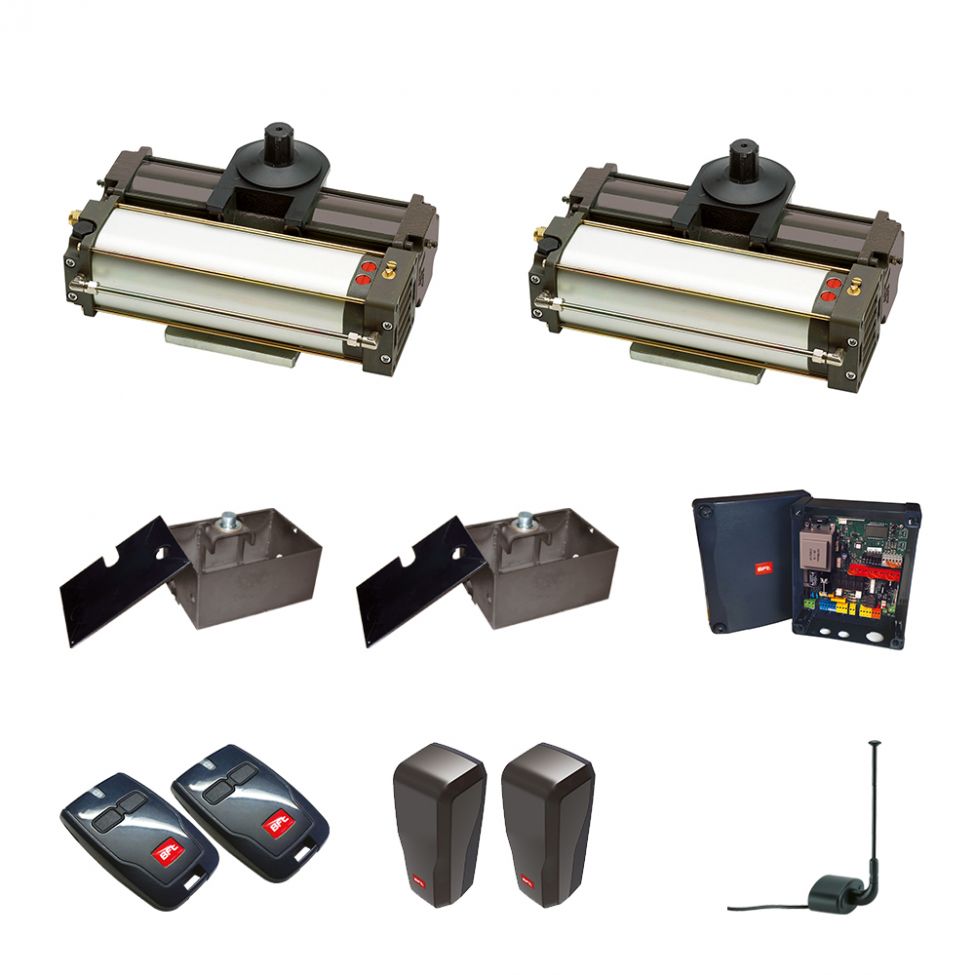

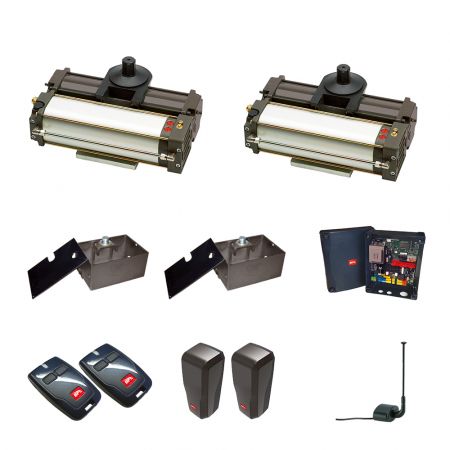

Kit Contents

  • 2 × BFT SUB GR 230V hydraulic underground operators

  • 2 × Heavy-duty foundation boxes

  • 1 × BFT Rigel 6 control panel with receiver

  • 2 × BFT Mitto two-button remote controls

  • 1 × Pair of BFT safety photocells

  • 1 × BFT radio antenna

Useful Information

The SUB GR combines 180° opening, hydraulic locking and slowdown. For installations where slowdown is not required, the SUB G Double Kit is the corresponding alternative.

This kit is designed for a pair of swing gates. Left- and right-hand motor configurations should be confirmed before ordering.

MPN:

SUB GR Kit

SKU:

SUB GR Kit
Specification
BrandBFT
SKUSUB GR Kit
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)4.5m
Warranty2 Years
