Click Here To Enlarge This Photo Of BFT SUB GR 230V Hydraulic Underground Single Gate Kit

BFT SUB GR 230V Hydraulic Underground Single Gate Kit

Add To Favourites
BFT
£1,195.00 Ex. VAT(£1,434.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB GR Single Kit is a 230V hydraulic underground swing gate automation system designed for very intensive use in residential, commercial and multi-user installations.

Suitable for a single swing gate leaf up to 1.8m wide and weighing up to 800kg, the SUB GR features hydraulic locking, integrated slowdown and 180° opening. Its underground installation keeps the automation discreet while providing reliable operation for frequently used entrances.

Key Specifications

  • Manufacturer: BFT

  • Model: SUB GR

  • Kit reference: SUB GR Single Kit

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 1.8m

  • Maximum gate leaf weight: 800kg

  • Motor type: Hydraulic underground

  • Locking: Hydraulic locking

  • Maximum opening angle: 180°

  • Opening time: 10 seconds through 90° plus slowdown

  • Slowdown: Yes

  • Impact reaction: Hydraulic clutch

  • Control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP67

  • Operating temperature: -10°C to +60°C

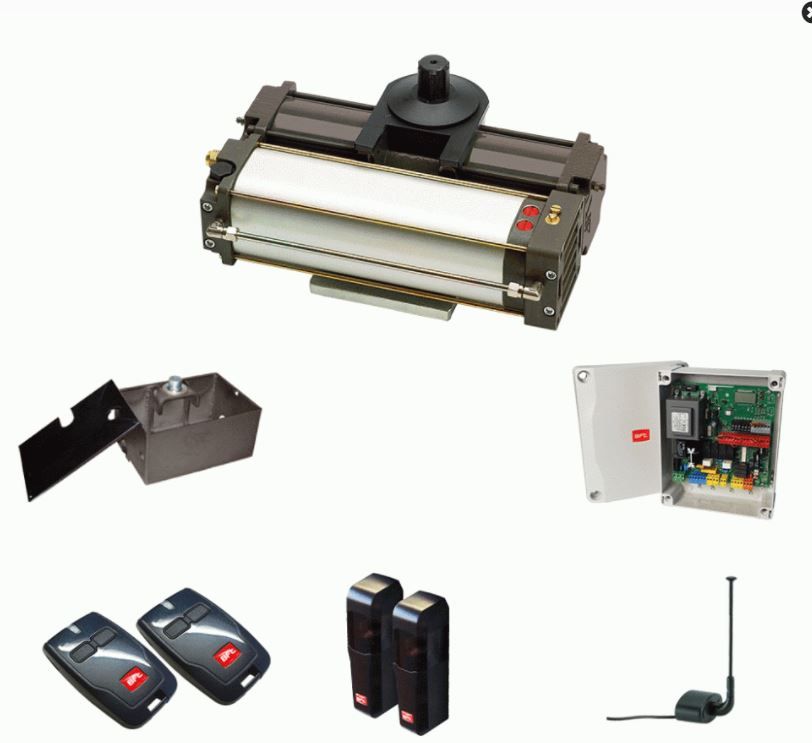

What's Included

  • 1 x BFT SUB GR 230V Hydraulic Underground Motor

  • 1 x BFT Heavy-Duty 180° Foundation Box

  • 1 x BFT RIGEL 6 Control Panel

  • 2 x BFT Mitto RB 2-Button Transmitters

  • 1 x Pair of BFT Safety Photocells

  • 1 x BFT Radio Antenna

Installer Note

The SUB GR is hydraulically locking and incorporates slowdown in both directions. Unlike the standard SUB G, it offers controlled deceleration during gate movement.

Ensure the correct 180° foundation box and left- or right-hand motor configuration are selected for the installation.

MPN:

SUB GR Single Kit

SKU:

SUB GR Single Kit
Specification
BrandBFT
SKUSUB GR Single Kit
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)1.8m
Warranty2 Years
