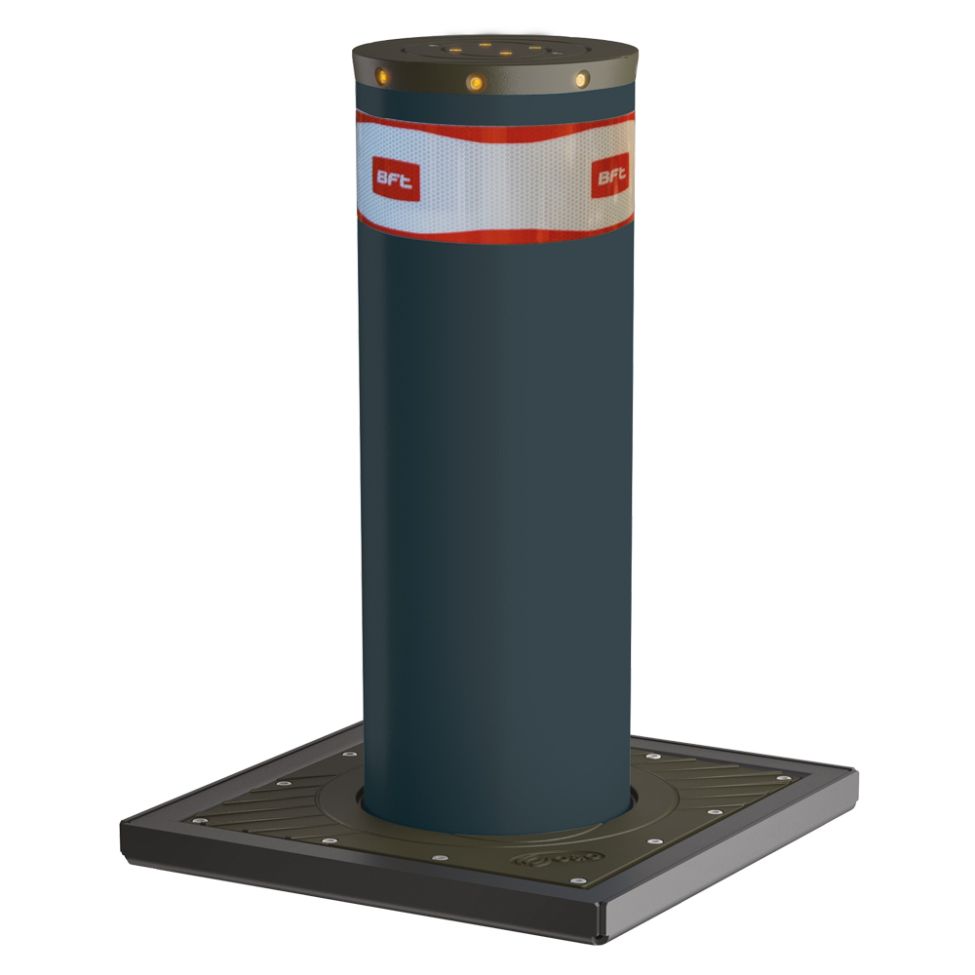

BFT Ranch E 1200 x 330mm Fixed Security Bollard with LED Lights – Painted Steel

The BFT Ranch E is a heavy-duty fixed security bollard designed for permanent vehicle access restriction and high-security perimeter protection.

Featuring a 1200mm above-ground height and 330mm nominal diameter, the Ranch E is suitable for commercial premises, industrial facilities, government buildings, public spaces and other locations requiring enhanced protection against unauthorised vehicle access.

Manufactured from heavy-duty steel with a RAL 7015 painted finish, the bollard incorporates an integrated LED light crown to improve visibility to approaching drivers. Its reinforced construction provides high resistance to vehicle impact.

The Ranch E is designed to complement the BFT XPASS B 1200 automatic rising bollard, allowing fixed and retractable bollards to be combined within a coordinated security installation.

Unlike an automatic rising bollard, the Ranch E remains permanently fixed in position and does not require a motor or hydraulic operating system.

Key Specifications

• Manufacturer: BFT

• Model: RANCH E 330/1200C L

• Product Type: Fixed High-Security Bollard

• Manufacturer Reference: P970269 00103 (confirm against UK supplier reference)

• Above-Ground Height: 1200mm

• Shaft Diameter: 330mm nominal

• Shaft Thickness: 14mm

• Material: Heavy-Duty Steel

• Finish: Painted Steel, RAL 7015

• Operation: Fixed / Non-Retractable

• Integrated Lighting: LED Light Crown

• Reflective Strip: 100mm

• Impact Resistance: 350,000 Joules

• Breaking Resistance: 2,100,000 Joules

• Compatible Range: BFT XPASS B 1200

• Application: High-Security Vehicle Access and Perimeter Protection

Impact and breaking resistance figures relate to the manufacturer's specified installation arrangement.

What's Included

• 1 x BFT Ranch E 1200 x 330mm Fixed Security Bollard – Painted Steel

• Integrated LED Light Crown

• Reflective Strip

The fixing flange, LED power supply and installation materials are not included and should be ordered separately where required.

Installer Note

The BFT Ranch E is a permanently fixed security bollard intended for high-security installations and hostile vehicle mitigation applications.

The bollard must be installed using the manufacturer's specified foundation design, fixing arrangements and reinforcement requirements. The fixing flange is available separately.

A suitable external power supply is required to operate the integrated LED lighting. The BFT ALLU K12 power supply is designed for compatible illuminated fixed bollard installations.

The Ranch E can be installed alongside BFT XPASS B 1200 automatic rising bollards to provide a consistent appearance across fixed and controlled vehicle access points.

Security certification: The Ranch E is based on the XPASS high-security bollard design. Manufacturer literature references PAS 68 and IWA 14 performance, but the certification of a complete installation depends on the exact tested bollard configuration, foundation and spacing. The Ranch E should not be advertised as independently crash-tested in every installation arrangement.
