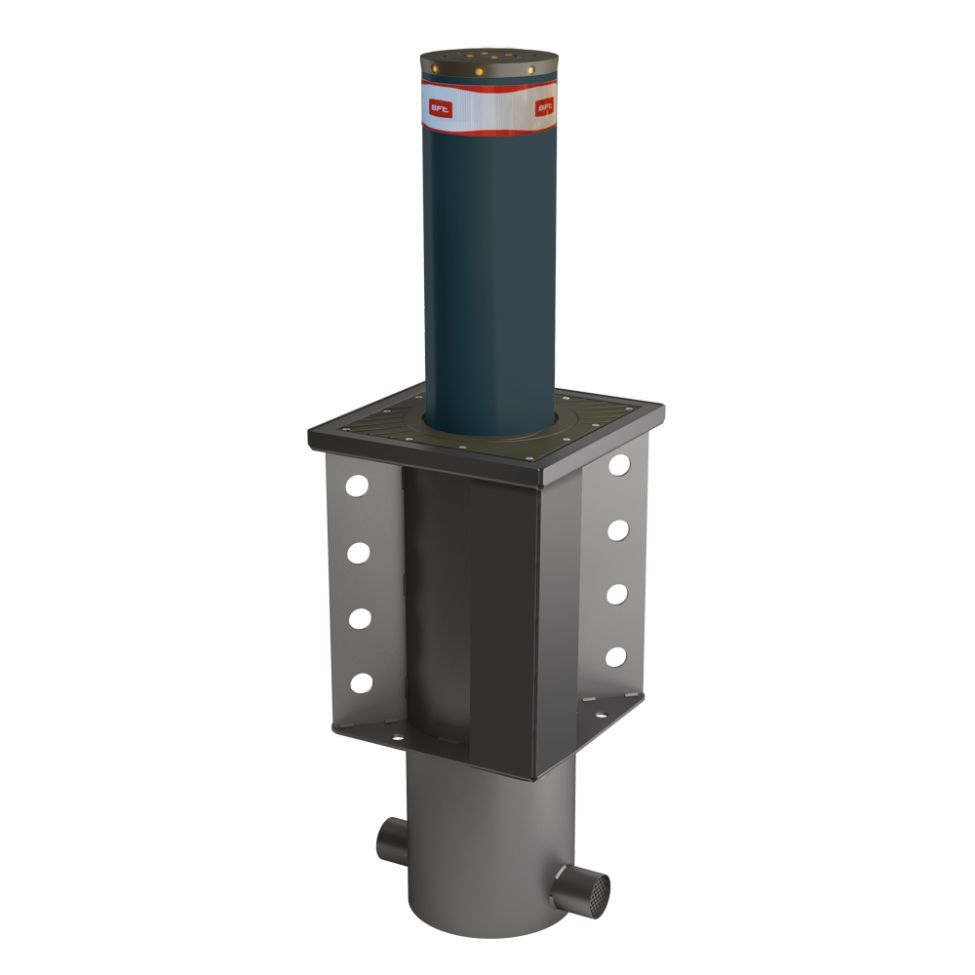

BFT XPASS B 275/800 Automatic Hydraulic Bollard with LED Lights

Description

The BFT XPASS B 275/800 is a heavy-duty automatic hydraulic bollard designed for high-security vehicle access control and HVM applications. The 800mm high, 275mm diameter bollard has a 10mm thick steel shaft and integrated LED lights for improved visibility.

Crash-tested and certified to PAS68:2013 and IWA 14-1:2013 standards, the XPASS B is designed for sites requiring a high level of vehicle protection. Each bollard has its own independent hydraulic pump, allowing other bollards within a multi-bollard installation to remain operational if an individual unit develops a fault.

Operating on 230V, the XPASS B rises in approximately 7 seconds and lowers in 4 seconds, with a frequency of use of up to 2,000 operations per day. It is designed for use with the BFT PERSEO CBE 230.P SD control unit.

The standard painted-steel version is finished in RAL 7015 with a 100mm reflective band.

Key Specifications

Manufacturer: BFT
Model: XPASS B 275/800
Type: Automatic hydraulic rising bollard
Power Supply: 230V
Bollard Height: 800mm
Bollard Diameter: 275mm
Shaft Thickness: 10mm
Rising Time: 7 seconds
Lowering Time: 4 seconds
Frequency of Use: Up to 2,000 operations per day
Break-in Resistance: 800,000 J
Control Unit: PERSEO CBE 230.P SD
Limit Switch: Reed magnetic sensor
Finish: RAL 7015 painted steel with reflective band
Lighting: Integrated LED lights
Operating Temperature: -40°C to +60°C
Certification: PAS68:2013 / IWA 14-1:2013

Installer Note

The XPASS B is an HVM/security bollard rather than a standard traffic-control bollard and is intended for installations requiring a high level of vehicle impact protection.
