CAME ATS P3 230V Double Swing Gate Automation Kit – Up to 3m

Description

The CAME ATS P3 is a complete 230V automation kit for a pair of swing gates, suitable for gate leaves up to 3m and 400kg per leaf, or heavier gates up to 800kg at 2m per leaf.

The kit uses two CAME ATS30AGS telescopic operators. The ATS design is particularly useful on larger gate posts, accommodating a C dimension up to 200mm. A die-cast aluminium structure and bevel gear transmission provide strong, smooth operation for residential and commercial swing gate installations.

The ATS30AGS is an irreversible 230V operator with adjustable opening and closing slowdown. The telescopic design allows the operator to adapt to different post depths while keeping the installation straightforward.

This is a double gate kit and includes the two ATS operators, control panel, radio equipment, two transmitters and a pair of CAME DIR10 safety photocells.

Key Specifications

Manufacturer: CAME
Model: ATS P3
SKU: ATS-P3
Product Type: Double swing gate automation kit
Operator: ATS30AGS telescopic linear operator
Number of Motors: 2
Motor Voltage: 230V AC
Maximum Gate Leaf Length: 3m
Maximum Gate Leaf Weight: 400kg at 3m / up to 800kg at 2m
Maximum C Dimension: 200mm
Operator Type: Electromechanical / telescopic linear
Gearmotor: Irreversible
Protection Rating: IP54
Motor Power: 250W
Opening Time to 90°: Approx. 20 seconds
Thrust: 400–3000N
Operating Temperature: -20°C to +55°C
Warranty: 3 years

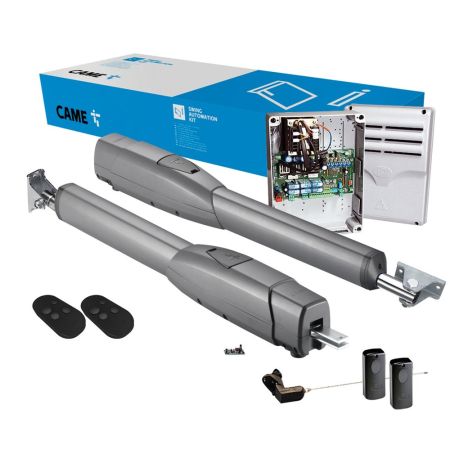

Kit Includes

2 x CAME ATS30AGS 230V Telescopic Gate Operators
1 x CAME 230V Multifunction Control Panel
1 x Plug-in Radio Frequency Card
2 x 4-Button Fixed Code Transmitters
1 x Tuned Antenna
1 x Pair CAME DIR10 Safety Photocells

Installer Note

One of the main advantages of the ATS P3 is its ability to accommodate a C dimension up to 200mm, making it a useful option where gate hinges are set further back from the face of larger posts or pillars.

Gate weight and leaf length should be considered together when specifying the operator. The P3 is suitable for up to 400kg at 3m per leaf, with higher gate weights possible on shorter leaves. For longer gates, the CAME ATS P5 is the corresponding model for leaves up to 5m.
