FAAC 390 Double Kit

Description

Electro-mechanical gate kit with articulated arm for residential swing leaf gates with single leaf length of 1.8m (3m with electric lock), for bi-folding doors with 1.5m maximum width of single panel. Use frequency 18 cycles per day.

FAAC 390 Double Kit costs less at the Electric Gate Store. Never beaten on price.

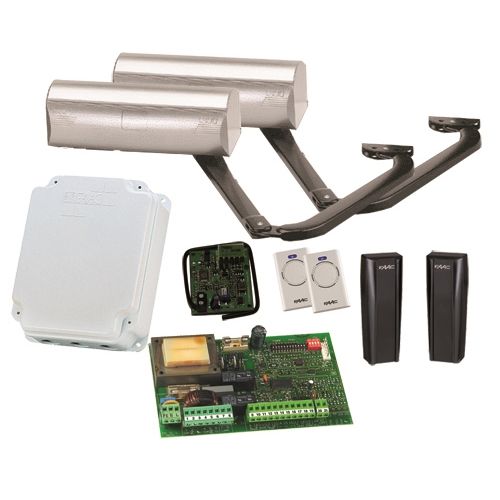

Kit Includes:

• 104570 - 2 x 390 Electromechanical Operator
• 738705 - 2 x 390 Articulated Arm
• 790917 - 1 x 455 D Control Board
• 787730 - 1 x Plug in receiver/decoder 868 SLH
• 720119 - 1 x Model E Control Board Housing
• 785102 - 1 x XP20D Directional Photocell
• 787009 - 2 x XT2 868 SLH LR 2 Button White

More Details:

• The system has non-reversing motors that hold the gate in the open and closed position
• Maximum anti-crushing safety thanks to an exclusive electronic device
• IMPORTANT to ensure correct operation, make sure that the distance between the gate hinge and the gate pier edge is max 300mm
• The Electro-mechanical operator is simple to install, requiring no welding. Its available in both 230V and 24V versions.
