Click Here To Enlarge This Photo Of FAAC 413 LS 230V Double Swing Gate Automation Kit

FAAC 413 LS 230V Double Swing Gate Automation Kit

Add To Favourites
FAAC
£1,089.00 Ex. VAT(£1,306.80 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 413 LS Double Kit is a 230V electromechanical automation system designed for double swing gates up to 1.8 metres per leaf, or 2.5 metres per leaf when fitted with an electric lock.

Featuring two FAAC 413 LS linear operators, the system provides reliable automation for residential and suitable light commercial swing gate installations. Each operator incorporates adjustable opening and closing limit switches, integrated mechanical travel stops and a self-locking worm-drive mechanism.

The LS version offers additional control over gate travel compared with the standard FAAC 413 operator, allowing installers to set the opening and closing positions accurately and configure slowdown through a compatible control board.

Constructed with a die-cast aluminium housing and protective double-coat finish, the FAAC 413 LS is designed for dependable outdoor operation. A key-operated manual release allows the gates to be operated manually during power failures.

KEY SPECIFICATIONS

  • Manufacturer: FAAC

  • Model: 413 LS

  • Operator part number: 104414

  • Voltage: 230V AC

  • Maximum gate width: 1.8m per leaf without electric lock

  • Maximum gate width with electric lock: 2.5m per leaf

  • Application: Double swing gates

  • Motor type: Electromechanical linear worm-drive

  • Motor power consumption: 250W per operator

  • Motor current: 1.1A

  • Maximum thrust: 200 daN

  • Rod stroke: 300mm (350mm without mechanical stops)

  • Rod extension speed: 1.6cm/sec

  • Operating frequency: Approximately 30 cycles per hour at 20°C

  • Limit switches: Integrated opening and closing microswitches

  • Mechanical stops: Integrated opening and closing

  • Locking: Mechanical self-locking

  • Manual release: Key-operated

  • Operator dimensions: 785 × 105 × 148mm

  • Operator weight: 6.5kg

  • Operating temperature: -20°C to +55°C

  • Protection rating: IP54

  • Standard alternative: FAAC 413 without limit switches

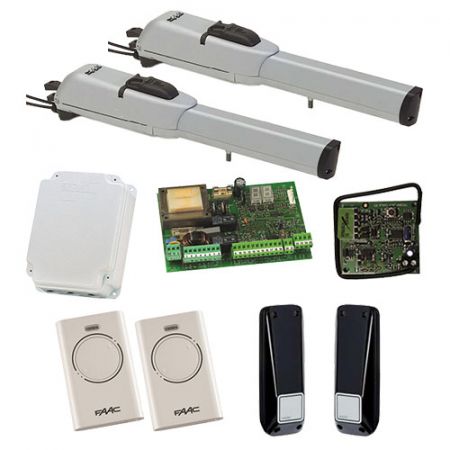

WHAT'S INCLUDED

  • 2 x FAAC 413 LS 230V electromechanical operators (104414)

  • 1 x FAAC 455 D control board (790917)

  • 1 x FAAC Model E control board housing (720119)

  • 1 x Pair of FAAC XP20D directional safety photocells (785102)

  • 1 x FAAC 868 SLH plug-in receiver/decoder (787730)

  • 2 x FAAC XT2 868 SLH LR two-button transmitters

  • Operator mounting hardware and manual release keys

INSTALLER NOTE

The FAAC 413 LS incorporates opening and closing limit switches, unlike the standard FAAC 413 operator. These allow more precise control of gate travel and can support slowdown functions when used with a compatible control panel.

The operators are mechanically self-locking on gate leaves up to 1.8 metres. An electric lock is required for longer leaves, up to the maximum supported length of 2.5 metres.

Before installation, check gate hinge positions, pillar dimensions, mounting geometry and the available operator stroke. The 413 LS is a 230V system and must not be confused with the FAAC 413 LS 24V version.

Appropriate safety devices, force limitation and commissioning tests are required to ensure compliance with applicable automated gate safety standards.

MPN:

413 LS Kit

SKU:

413 LS Kit
Specification
BrandFAAC
SKU413 LS Kit
Model413
Automation ForSwing Gate
OperatorArm
Type of OperatorElectromechanical
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)1.8m (2.5 with electric lock)
Warranty3 Years
