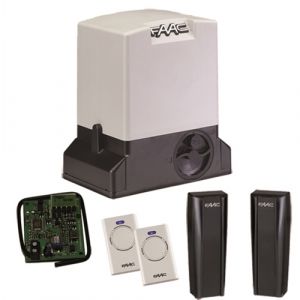

Click Here To Enlarge This Photo Of FAAC 740 E Z16 Sliding Gate Gearmotor – 500kg

FAAC 740 E Z16 Sliding Gate Gearmotor – 500kg

Add To Favourites
FAAC
£542.00 Ex. VAT(£650.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 740 E Z16 is a 230V electromechanical sliding gate gearmotor designed for residential sliding gates weighing up to 500kg. Compact and robust, it is suitable for new installations and replacing existing FAAC 740 operators.

Featuring a non-reversing gearbox, the FAAC 740 E Z16 holds the gate in position when the motor is not operating, eliminating the need for an additional electric lock in standard installations.

The integrated 740D electronic control board provides programmable operating settings, including automatic closing, motor force adjustment and slowdown functions. A built-in electronic encoder supports obstacle detection, while magnetic limit switches provide accurate gate positioning.

The Z16 Module 4 pinion provides reliable drive through a compatible sliding gate rack, while the key-operated manual release allows the gate to be moved by hand during power failures.

Technical Specifications

  • Manufacturer: FAAC

  • Model: 740 E Z16

  • Power Supply: 230V AC

  • Maximum Gate Weight: 500kg

  • Gate Speed: 12m/min

  • Motor Power: 350W

  • Maximum Thrust: 450N

  • Control Board: 740D integrated

  • Pinion: Z16 Module 4

  • Limit Switches: Magnetic

  • Gearbox: Non-reversing

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Manual Release: Key operated

  • Application: Residential sliding gates

MPN:

1097805

SKU:

1097805
Specification
BrandFAAC
SKU1097805
Model740
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage230V
Max. Weight of Gate500KG
Warranty3 Years
