Click Here To Enlarge This Photo Of FAAC 740 E Z16 230V Sliding Gate Motor Kit – 500kg

FAAC 740 E Z16 230V Sliding Gate Motor Kit – 500kg

Add To Favourites
FAAC
£656.00 Ex. VAT(£787.20 Inc. VAT)

In Stock

(From 1 Reviews)

Description

The FAAC 740 E Z16 is a 230V sliding gate automation kit designed for residential sliding gates weighing up to 500kg.

Featuring an integrated 740D control board and encoder, the operator provides electronic obstacle detection, adjustable operating force and controlled slowing during opening and closing.

The non-reversing gearmotor mechanically locks the gate when stationary, removing the need for a separate electric lock. A key-operated manual release allows the gate to be operated manually during a power failure.

Suitable for residential sliding gates up to 15 metres in length.

Key Specifications

  • Manufacturer: FAAC
  • Model: 740 E Z16
  • Kit SKU: 740 UK KIT (subject to confirmation)
  • Motor voltage: 230V AC
  • Maximum gate weight: 500kg
  • Maximum gate length: 15m
  • Gate speed: 12m/min
  • Power consumption: 350W
  • Use frequency: 30%
  • Control board: 740D integrated
  • Motor type: Electromechanical
  • Pinion: Z16
  • Limit switches: Inductive
  • Obstacle detection: Integrated encoder
  • Manual release: Key-operated
  • Protection rating: IP44
  • Operating temperature: -20°C to +55°C
  • Dimensions: 295 × 225 × 325mm (including pinion)

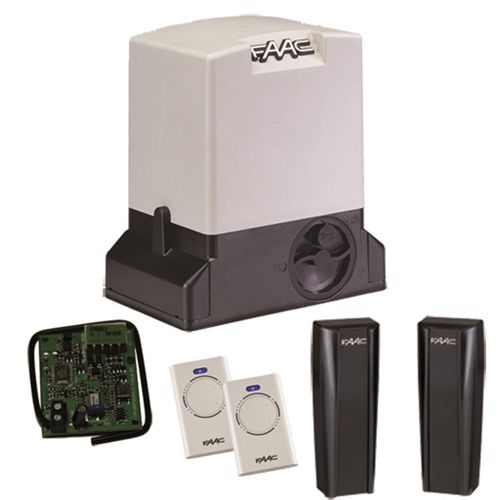

What's Included

  • 1 × FAAC 740 E Z16 sliding gate motor with integrated control board
  • 1 × Pair of FAAC XP20D photocells
  • 1 × FAAC 868 SLH plug-in receiver/decoder
  • 2 × FAAC XT2 868 SLH LR two-button transmitters

Kit contents should be confirmed against the current FAAC UK kit specification before publication.

Installer Note

Suitable for residential sliding gates weighing up to 500kg. The integrated encoder provides obstacle detection and controlled slowing, while the key-operated manual release allows manual operation during power failures.

Gate rack is sold separately. Additional safety devices may be required following the installation risk assessment.

MPN:

740 UK KIT

SKU:

740 UK KIT
Specification
BrandFAAC
SKU740 UK KIT
Model740
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage230V
Max. Weight of Gate500KG
Warranty3 Years
