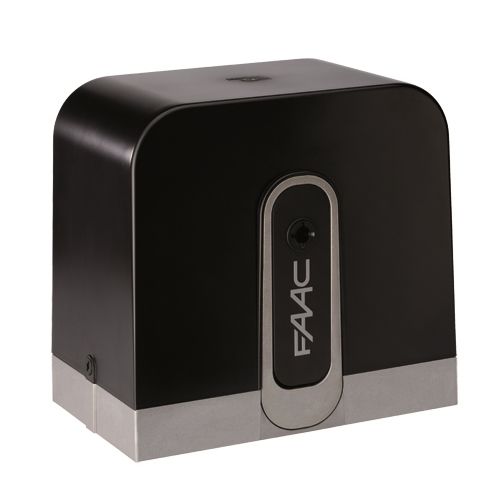

Click Here To Enlarge This Photo Of FAAC C720 24V Sliding Gate Gearmotor – 400kg (109320)

FAAC C720 24V Sliding Gate Gearmotor – 400kg (109320)

Add To Favourites
FAAC
£450.00 Ex. VAT(£540.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC C720 is a compact 24V electromechanical sliding gate motor designed for residential sliding gates weighing up to 400kg. Suitable for new installations or replacing an existing FAAC C720 operator, it combines reliable performance with efficient motor control.

Featuring FAAC's patented moving-axis reduction system, the C720 delivers mechanical efficiency exceeding 80%, helping reduce energy consumption, vibration and operating noise.

The integrated E721 control board provides programmable operating settings, electronic force adjustment and obstacle detection through a virtual encoder. Magnetic limit switches ensure accurate gate positioning, while adjustable speeds of up to 18 metres per minute allow the operator to be configured to suit individual installations.

The C720 is compatible with FAAC BUS safety accessories and supports an optional battery backup system.

Key Features

  • 24V DC electromechanical sliding gate motor

  • Suitable for sliding gates weighing up to 400kg

  • Integrated FAAC E721 control board

  • Patented moving-axis reduction system

  • Mechanical efficiency exceeding 80%

  • Virtual encoder with obstacle detection

  • Magnetic opening and closing limit switches

  • Adjustable gate speed up to 18m/min

  • Electronic force adjustment and programmable slowdown

  • Compatible with FAAC BUS safety accessories

  • Optional battery backup compatibility

  • Manual release for operation during power failures

Technical Specifications

  • Manufacturer: FAAC

  • Model: C720

  • Product Code: 109320

  • Mains Supply: 230V AC

  • Motor Voltage: 24V DC

  • Maximum Gate Weight: 400kg

  • Maximum Gate Length: 15m

  • Maximum Gate Speed: 18m/min

  • Power Consumption: 170W

  • Maximum Torque: 18Nm

  • Maximum Thrust: 320N

  • Control Board: E721 integrated

  • Limit Switches: Magnetic

  • Pinion: Z28 Module 4

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Dimensions: 300 × 180 × 280mm

  • Application: Residential sliding gates

Installer & User Tips

Installation: Ensure the gate moves freely and check the rack alignment, pinion height and mechanical stops before commissioning.

Safety: Configure the E721 control board correctly and carry out the required safety checks and force testing.

Power Failure: Use the manual release to operate the gate by hand. Compatible battery backup is available separately.

Please Note: This is the FAAC C720 gearmotor with integrated control board, not a complete automation kit.

MPN:

109320

SKU:

109320
Specification
BrandFAAC
SKU109320
ModelC720
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage24V
Max. Weight of Gate400KG
Warranty3 Years
