Click Here To Enlarge This Photo Of FAAC C720 24V Sliding Gate Motor Kit – 400kg

FAAC C720 24V Sliding Gate Motor Kit – 400kg

Add To Favourites
FAAC
£615.00 Ex. VAT(£738.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC C720 is a 24V sliding gate automation kit designed for residential sliding gates weighing up to 400kg.

Featuring an integrated E721 control board and electronic encoder, the C720 provides obstacle detection, adjustable operating speeds and controlled slowing during opening and closing.

The 24V electromechanical motor incorporates FAAC's patented reduction system for smooth, quiet operation. Its continuous-use capability makes it suitable for frequently operated residential entrances.

The non-reversing gearmotor holds the gate in position when stationary, while the key-operated manual release allows manual operation during a power failure.

Key Specifications

  • Manufacturer: FAAC
  • Model: C720
  • Kit SKU: C720 UK KIT (subject to confirmation)
  • Motor part number: 109320
  • Motor voltage: 24V DC
  • Mains supply: 230V AC
  • Maximum gate weight: 400kg
  • Maximum gate length: 15m
  • Maximum gate speed: 18m/min
  • Power consumption: 170W
  • Control board: E721 integrated
  • Motor type: Electromechanical
  • Duty cycle: Continuous use
  • Limit switches: Magnetic
  • Obstacle detection: Electronic encoder
  • Maximum thrust: 320N
  • Protection rating: IP44
  • Operating temperature: -20°C to +55°C
  • Dimensions: 300 × 180 × 280mm

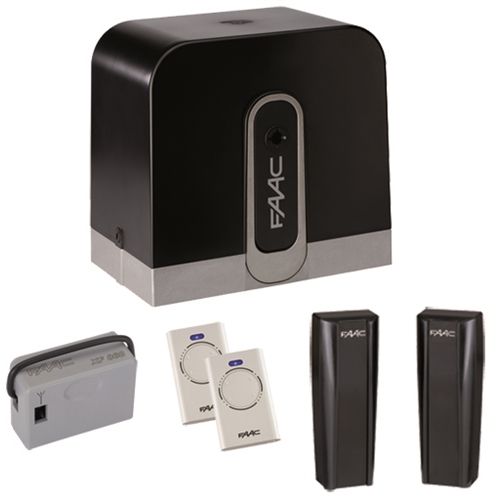

What's Included

  • 1 × FAAC C720 24V sliding gate motor with integrated E721 control board (109320)
  • 1 × Pair of FAAC XP20D photocells
  • 1 × FAAC plug-in receiver/decoder
  • 2 × FAAC XT2 868 SLH LR two-button transmitters

Kit contents should be confirmed against FAAC's current UK specification before publication.

Installer Note

Suitable for residential sliding gates weighing up to 400kg. The integrated E721 control board supports adjustable operating parameters and FAAC BUS accessories.

Gate rack is sold separately. Additional safety devices may be required following the installation risk assessment.

MPN:

C720 UK KIT

SKU:

C720 UK KIT
Specification
BrandFAAC
SKUC720 UK KIT
ModelC720
Automation ForSliding Gate
OperatorGearmotor
Type of OperatorElectromechanical
Voltage24V
Max. Weight of Gate400KG
Warranty3 Years
