FAAC Decoder Board MINIDEC DS

Description

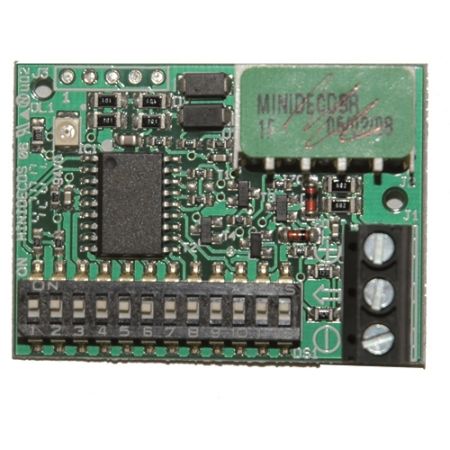

The FAAC MINIDEC DS is a single-channel plug-in decoder board for FAAC DS dip-switch radio systems.

It plugs directly into compatible FAAC control boards and uses 12 dip switches to set the code, providing 4,096 possible code combinations. Unlike FAAC SLH systems, the DS system uses a fixed code rather than storing individual transmitter codes.

The MINIDEC DS can also be used with other control boards when installed with the appropriate FAAC 1RPINTF interface board.

Key Specifications

Manufacturer: FAAC
Model: MINIDEC DS
SKU: 785509
Product Type: Decoder board
Coding System: DS fixed code / dip switch
Channels: 1
Code Combinations: 4,096
Coding: 12 dip switches
Connection: Plug-in
Compatibility: FAAC control boards with compatible plug-in connector
Other Control Boards: Requires FAAC 1RPINTF interface board
Application: Gate automation and barrier control

What's Included

1 x FAAC MINIDEC DS Decoder Board

Installer Note

The MINIDEC DS uses fixed-code dip-switch programming and does not have a transmitter memory capacity in the same way as the FAAC SLH decoders. The transmitter and decoder dip-switch codes must correspond.

The radio frequency is determined by the compatible receiver used with the decoder.
