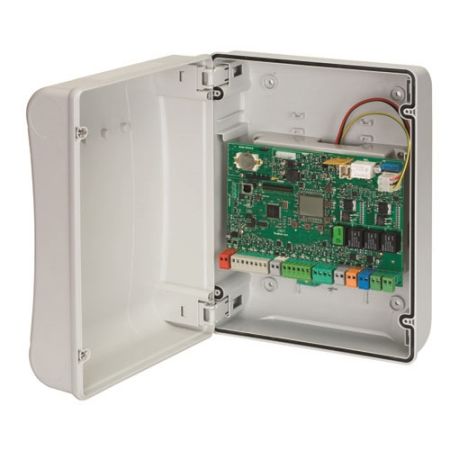

FAAC E124 Electronic Control Unit and Housing

Description

Swing gate control board for 24V operators

FAAC E124 Electronic Control Unit and Housing costs less at the Electric Gate Store. Never beaten on price.

More Details:

• Swing gate control board for 24V operators
• Additional programming features accessible via a device with USB port
• The E124 control board is considered to be one of the highest performance electronic control units for swing gates currently available on the market.
• Compatible with all FAAC 24V swing gate systems; the E124 will also control other brands. It’s a highly flexible control board with a huge range of variable parameters for swing gate installations.
• It has high levels of programmability, it offers:
• 10 standard logics which can be further customized to give almost unlimited programming.
• 50 different power levels and 10 different speeds which can be varied independently allowing maximum performance whilst monitoring anti crush safety.
• Powerful motor outputs allow up to 36Vdc to be supplied to the FAAC motors, which enables higher speeds compared to other 24V boards.
• Management of limit switches and encoders for safety and compliance to standards.
• Other features:
• The control board has an ultra sense function for obstacle detection with hydraulic operators.
• Hold closed function to pulse leaves closed every 1 to 48 hours.
• A cycle counter allows consistent and regular servicing by showing the total number of cycles or alternatively, the counter can be set to request assistance after a set number of cycles.
• The 32 bit processor platform has suffi cient capacity for today and the future. Software developments can be uploaded to the board as and when they become available. via a USB connector.
• It can be programmed via push buttons and advanced programming can be undertaken via PC. (Software is available free of charge).
