Click Here To Enlarge This Photo Of BFT LD200 230V Dual Channel Boxed Vehicle Loop Detector

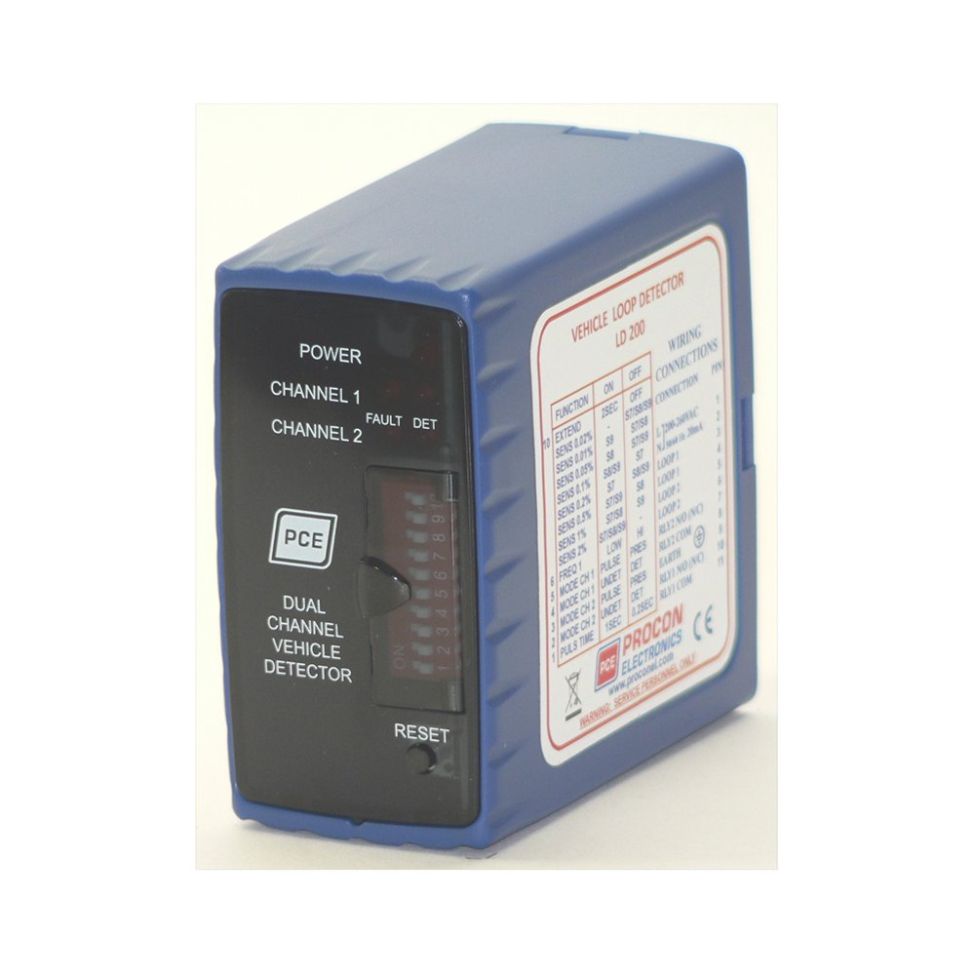

BFT LD200 230V Dual Channel Boxed Vehicle Loop Detector

Add To Favourites
BFT
£115.00 Ex. VAT(£138.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT LD200 is a 230V dual-channel inductive loop detector designed for vehicle detection in automatic gate, car park barrier and access control installations.

Featuring two independent detection channels, the LD200 supports vehicle presence detection, free entry and exit, safety loop applications and directional control. Adjustable sensitivity and selectable relay functions allow the detector to be configured for different traffic management requirements.

Key Specifications

  • Manufacturer: BFT

  • Model: LD200

  • Product code: LD200

  • Power supply: 230V AC (200–260V)

  • Detection channels: 2

  • Detector type: Boxed inductive loop detector

  • Connection: 11-pin plug-in base

  • Sensitivity: 8 adjustable settings

  • Frequency: 2 selectable settings

  • Output contacts: Normally open and normally closed

  • Relay functions: Pulse and presence detection

  • Directional logic: Yes

  • Configuration: DIP switches

  • Diagnostics: LED indicators

  • Operating temperature: -40°C to +80°C

  • Dimensions: 80 x 40 x 79mm, excluding connector

What's Included

  • 1 x BFT LD200 230V Dual Channel Boxed Loop Detector

Installer Note

The LD200 requires a compatible 11-pin LOOPBASE socket and inductive loop cable, both available separately.

Unlike the LD202, which operates on a low-voltage supply, the LD200 requires 230V AC. Check the existing power supply, loop wiring and detector configuration before ordering.

MPN:

LD200

SKU:

LD200
Specification
BrandBFT
SKULD200
Voltage230V
Warranty2 Years
