Click Here To Enlarge This Photo Of BFT SUB EL 230V Hydraulic Underground Double Swing Gate Automation Kit

BFT SUB EL 230V Hydraulic Underground Double Swing Gate Automation Kit

Add To Favourites
BFT
£1,615.00 Ex. VAT(£1,938.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB EL Double Kit is a 230V hydraulic underground swing gate automation system designed for very intensive use in residential, commercial and multi-user installations.

Suitable for double swing gates with leaves up to 3.5m wide and weighing up to 800kg each, the SUB EL provides powerful, discreet automation for larger entrances. The underground hydraulic operators remain concealed beneath the gates, preserving the appearance of the entrance.

Key Specifications

  • Manufacturer: BFT

  • Model: SUB EL

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 3.5m per leaf

  • Maximum gate leaf weight: 800kg per leaf

  • Motor type: Hydraulic underground

  • Locking: Non-locking

  • Maximum opening angle: 130°

  • Opening time: 23 seconds through 90°

  • Slowdown: No

  • Impact reaction: Hydraulic clutch

  • Control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP67

  • Operating temperature: -10°C to +60°C

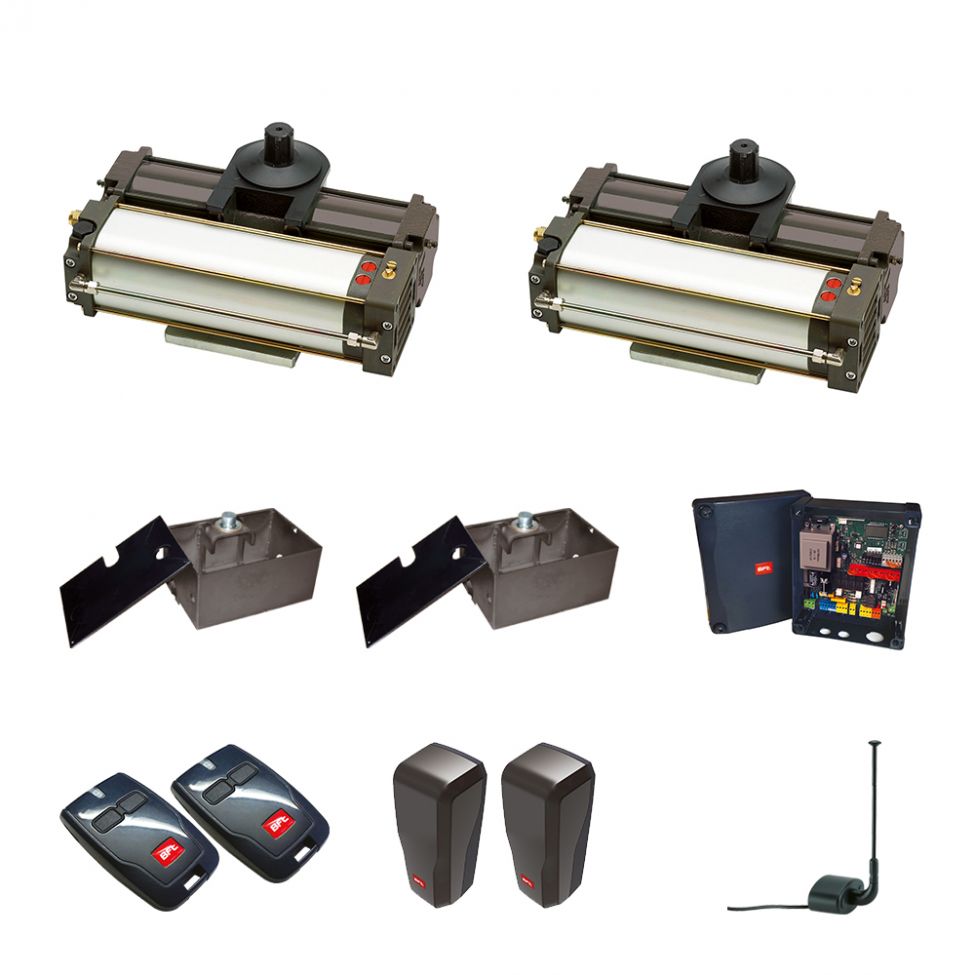

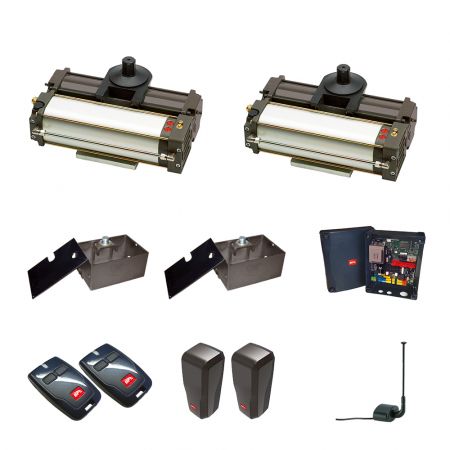

What's Included

  • 2 x BFT SUB EL 230V Hydraulic Underground Motors

  • 2 x BFT Heavy-Duty Foundation Boxes

  • 1 x BFT RIGEL 6 Control Panel

  • 2 x BFT Mitto 2-Button Transmitters

  • 1 x Pair of BFT Safety Photocells

  • 1 x BFT Radio Antenna

Installer Note

The SUB EL is designed for larger swing gates, accommodating leaves up to 3.5m.

As these are non-locking hydraulic operators, a suitable electric lock may be required to secure the gates when closed. Confirm the correct left- and right-hand motor configurations before ordering.

MPN:

SUB EL Kit

SKU:

SUB EL Kit
Specification
BrandBFT
SKUSUB EL Kit
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitDouble
Voltage230V
Max. Width of Gate (m)3.5m
Warranty2 Years
