Click Here To Enlarge This Photo Of BFT SUB EL 230V Hydraulic Underground Single Gate Kit

BFT SUB EL 230V Hydraulic Underground Single Gate Kit

Add To Favourites
BFT
£1,220.00 Ex. VAT(£1,464.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB EL Single Kit is a 230V hydraulic underground swing gate automation system designed for very intensive use in residential, commercial and multi-user installations.

Suitable for a single swing gate leaf up to 3.5m wide and weighing up to 800kg, the SUB EL provides powerful, discreet automation for larger swing gates. Its underground hydraulic operator keeps the automation concealed without compromising performance.

Key Specifications

  • Manufacturer: BFT

  • Model: SUB EL

  • Motor power supply: 230V AC

  • Maximum gate leaf length: 3.5m

  • Maximum gate leaf weight: 800kg

  • Motor type: Hydraulic underground

  • Locking: Non-locking

  • Maximum opening angle: 130°

  • Opening time: 23 seconds through 90°

  • Slowdown: No

  • Impact reaction: Hydraulic clutch

  • Control panel: BFT RIGEL 6

  • Frequency of use: Very intensive

  • Protection rating: IP67

  • Operating temperature: -10°C to +60°C

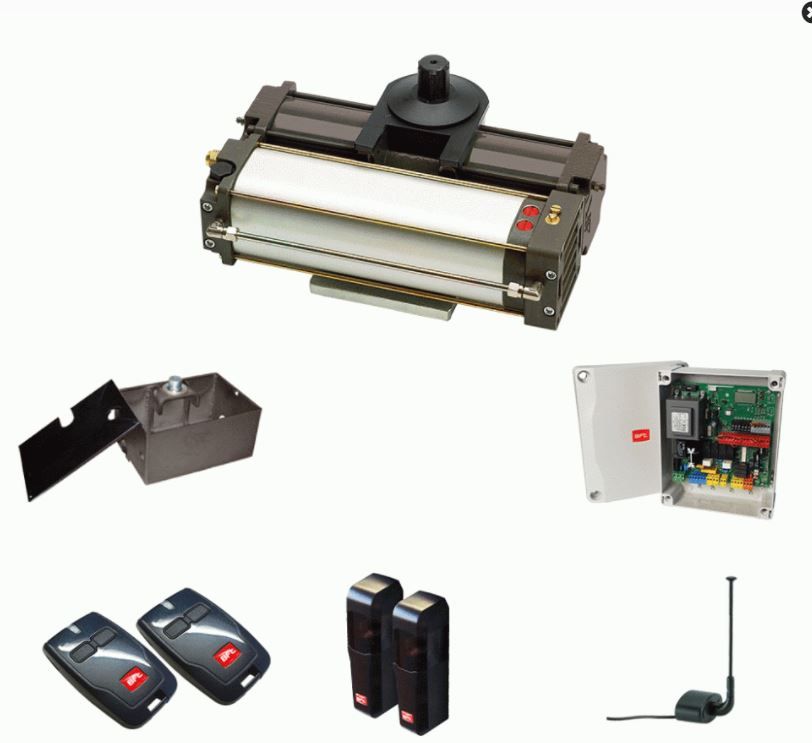

What's Included

  • 1 x BFT SUB EL 230V Hydraulic Underground Motor

  • 1 x BFT Heavy-Duty Foundation Box

  • 1 x BFT RIGEL 6 Control Panel

  • 2 x BFT Mitto 2-Button Transmitters

  • 1 x Pair of BFT Safety Photocells

  • 1 x BFT Radio Antenna

Installer Note

The SUB EL is the extended-leaf model within the SUB range, accommodating gate leaves up to 3.5m.

As this is a non-locking hydraulic operator, a suitable electric lock may be required to secure the gate when closed. Confirm the correct motor handing and foundation box before ordering.

MPN:

SUB EL Single Kit

SKU:

SUB EL Single Kit
Specification
BrandBFT
SKUSUB EL Single Kit
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Double / Single KitSingle
Voltage230V
Max. Width of Gate (m)3.5m
Warranty2 Years
