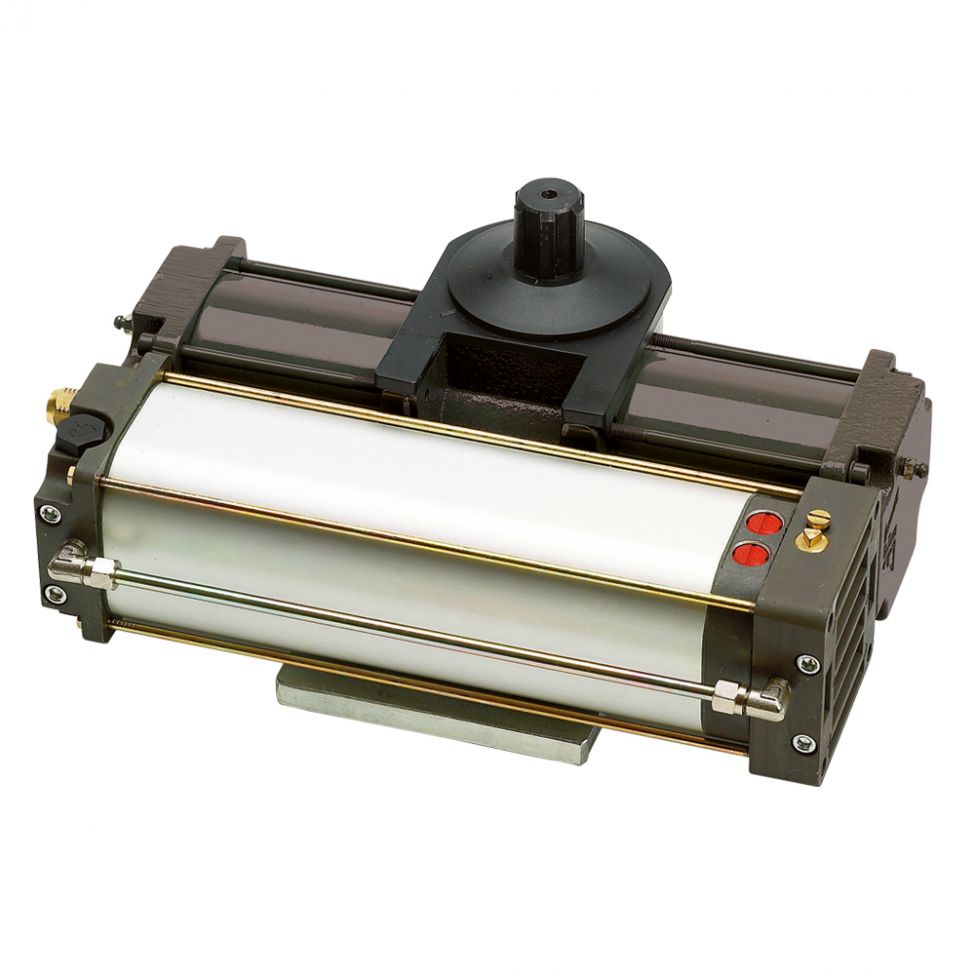

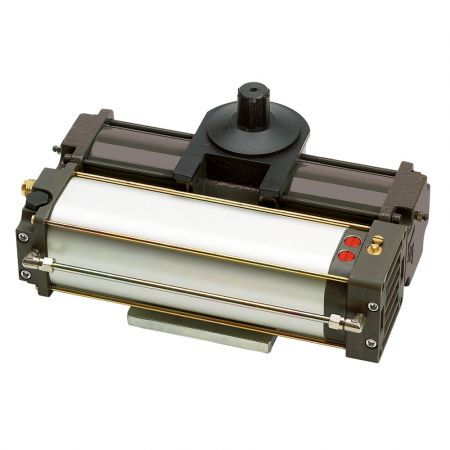

BFT SUB EL 230V Hydraulic Underground Swing Gate Motor – 3.5m

Add To Favourites
BFT
£750.00 Ex. VAT(£900.00 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT SUB EL is a 230V hydraulic underground swing gate motor designed for very intensive use on large residential, commercial and multi-residential entrances. Suitable for swing gate leaves up to 3.5 metres wide and weighing up to 800kg, it provides powerful, discreet automation for demanding installations.

Installed beneath the gate, the SUB EL keeps the automation mechanism concealed, preserving the appearance of the entrance. Its hydraulic drive and clutch system provide dependable operation, making it particularly suitable for larger swing gates requiring frequent use.

Key Features

  • 230V hydraulic underground swing gate operator

  • Maximum gate leaf width: 3.5m

  • Maximum gate leaf weight: 800kg

  • Maximum opening angle: 130°

  • Non-locking hydraulic operation

  • Opening time through 90°: 23 seconds

  • Designed for very intensive use

  • Hydraulic clutch impact reaction

  • IP67 protection rating

  • Operating temperature: -10°C to +60°C

  • Compatible with BFT Rigel 6 control panel

Useful Information

The SUB EL is the extended-leaf model within the BFT SUB range, accommodating swing gates up to 3.5m compared with the 2.5m capacity of the SUB E.

As the operator is non-locking, a suitable electric lock may be required to secure the gate when closed.

MPN:

SUB EL

SKU:

SUB EL
Specification
BrandBFT
SKUSUB EL
ModelSub
Automation ForSwing Gate
OperatorUnderground
Type of OperatorHydraulic
Voltage230V
Max. Weight of Gate800KG
Max. Width of Gate (m)3.5m
Warranty2 Years
