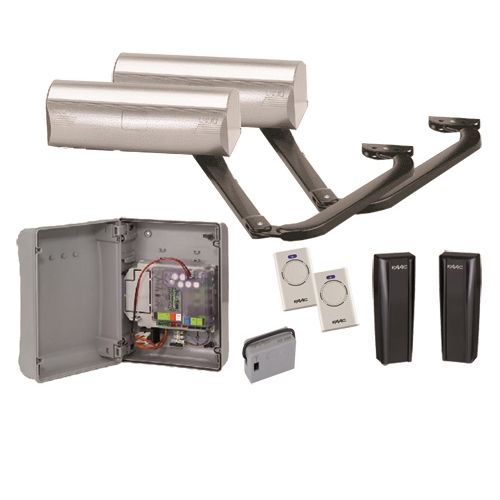

Click Here To Enlarge This Photo Of FAAC 390 24V Double Articulated Arm Swing Gate Automation Kit – 3m Per Leaf Click Here To Enlarge This Photo Of FAAC 390 24V Double Articulated Arm Swing Gate Automation Kit – 3m Per Leaf
Click Here To Enlarge
Click Here To Enlarge
Swipe

FAAC 390 24V Double Articulated Arm Swing Gate Automation Kit – 3m Per Leaf

Add To Favourites
FAAC
£1,487.00 Ex. VAT(£1,784.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 390 24V Double Kit is an electromechanical swing gate automation system designed for pairs of residential gates up to 1.8 metres per leaf, extending to 3 metres per leaf when fitted with a suitable electric lock.

Its articulated arm design makes the FAAC 390 particularly useful for gates mounted on large brick or stone pillars, where the hinge position can make conventional linear gate motors difficult to install. The above-ground operators attach to the gate pillars, with articulated arms providing the movement needed to open and close both leaves.

Each 24V operator features a non-reversing gearbox, helping hold the gates in position when stationary. The electronic control system incorporates virtual encoder technology for movement monitoring, obstacle detection and automatic reversal when an obstruction is detected.

Designed for frequent residential use, the 24V system also supports optional battery backup, allowing powered operation during a mains failure when the appropriate battery equipment is installed.

The FAAC 390 24V Double Kit is a practical choice for automating traditional timber gates, wrought iron gates and bespoke metal entrances, particularly where substantial gate pillars require the flexibility of articulated arm automation.

Kit Contents

  • 2 × FAAC 390 24V Electromechanical Operators (104573)

  • 2 × FAAC 390 Articulated Arms (738705)

  • 1 × FAAC 24V Control Board and Enclosure

  • 1 × FAAC Plug-in Radio Receiver

  • 1 Pair × FAAC XP20B D BUS Photocells (785103)

  • 2 × FAAC Two-Button Radio Transmitters

Technical Specifications

  • Manufacturer: FAAC

  • Model: 390 24V Double Kit

  • Kit Reference: 390 24V KIT

  • Operator Code: 104573

  • Mains Supply: 230V AC

  • Motor Voltage: 24V DC

  • Motor Type: Electromechanical, articulated arm

  • Maximum Gate Leaf Length: 1.8m without electric lock / 3m with electric lock

  • Maximum Motor Power: 40W per operator

  • Maximum Torque: 200Nm

  • Maximum Angular Speed: 8°/second

  • Gearbox: Non-reversing

  • Encoder: Virtual encoder via compatible control board

  • Operating Frequency: Continuous use

  • Protection Rating: IP44

  • Operating Temperature: -20°C to +55°C

  • Operator Dimensions: 410 × 130 × 130mm

  • Operator Weight: 11.5kg each

  • Gate Configuration: Double swing gates

Useful Information

Large Gate Pillars: The articulated arm arrangement accommodates gate hinges positioned further back on substantial pillars. FAAC specifies a maximum hinge-to-pier-edge distance of 300mm for this operator.

Electric Lock: An electric lock is required when using the operator on gate leaves exceeding 1.8m, up to the maximum permitted 3m.

Control Board: UK kit listings vary between E024S and E124S control equipment, with different receiver and transmitter generations. The exact components supplied should be confirmed against the current kit specification.

MPN:

390 24V Kit

SKU:

390 24V Kit
Specification
BrandFAAC
SKU390 24V Kit
Model390
Automation ForSwing Gate
OperatorArticulated Arm
Type of OperatorElectromechanical
Double / Single KitDouble
Voltage24V
Max. Width of Gate (m)1.8m (3 with electric lock)
Warranty3 Years
