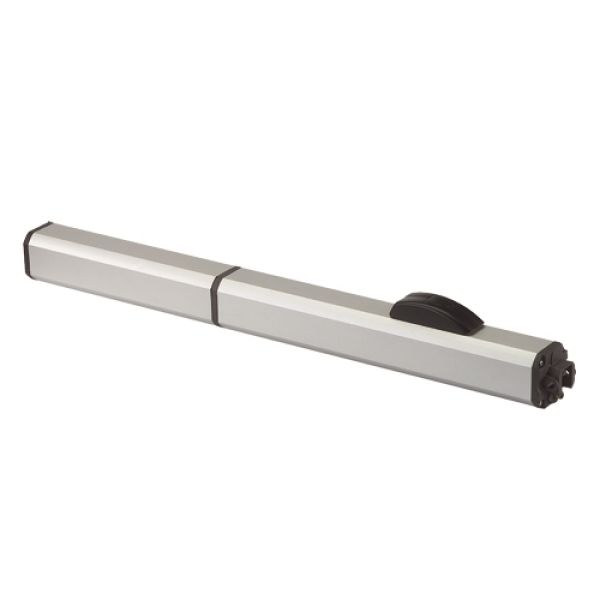

Click Here To Enlarge This Photo Of FAAC 400 CBA Hydraulic Swing Gate Operator – 104215

FAAC 400 CBA Hydraulic Swing Gate Operator – 104215

Add To Favourites
FAAC
£822.00 Ex. VAT(£986.40 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 400 CBA is a heavy-duty 230V hydraulic swing gate operator designed for residential, commercial and industrial gates up to 2.2 metres per leaf.

Featuring hydraulic locking in the opening position, the FAAC 400 CBA provides controlled gate movement and is particularly suited to installations requiring the gate to be held open hydraulically.

The operator uses a hydraulic drive system with adjustable bypass valves for force control, providing smooth and reliable operation in demanding environments. A key-operated manual release allows the gate to be moved manually when required.

Suitable for new installations or replacing an existing FAAC 400 CBA hydraulic operator, part number 104215.

Key Specifications

  • Manufacturer: FAAC

  • Model: 400 CBA

  • SKU: 104215

  • Operator Type: Hydraulic Linear Swing Gate Operator

  • Power Supply: 230V AC, 50Hz

  • Maximum Gate Leaf Length: 2.2m

  • Hydraulic Locking: Opening position only

  • Motor Power: 220W

  • Maximum Thrust: 6200N

  • Rod Stroke: 270mm

  • Rod Speed: 10mm/second

  • Pump Flow Rate: 1 litre/minute

  • Maximum Opening Angle: 125°

  • Usage Frequency: Up to 70 cycles per hour

  • Protection Rating: IP55

  • Operating Temperature: -20°C to +55°C

  • Operator Weight: Approximately 8.6kg

What's Included

- 1 x FAAC 400 CBA Hydraulic Operator (104215)

Installer Note

The FAAC 400 CBA provides hydraulic locking in the opening position only. Unlike the FAAC 400 CBAC, which locks in both directions, the CBA does not hydraulically lock the gate in the closed position.

When replacing an existing FAAC 400 operator, check the model identification, mounting geometry, rod stroke and locking requirements before ordering.

This listing is for the individual operator only. Control boards, photocells, receivers and remote controls are available separately.

MPN:

104215

SKU:

104215
Specification
BrandFAAC
SKU104215
Model400
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Voltage230V
Max. Width of Gate (m)2.2m
Warranty3 Years
