Click Here To Enlarge This Photo Of BFT Akta A30 180° Hardwired Safety Photocells – 30m Range

BFT Akta A30 180° Hardwired Safety Photocells – 30m Range

Add To Favourites
BFT
£77.00 Ex. VAT(£92.40 Inc. VAT)

In Stock

(From 1 Reviews)

Description

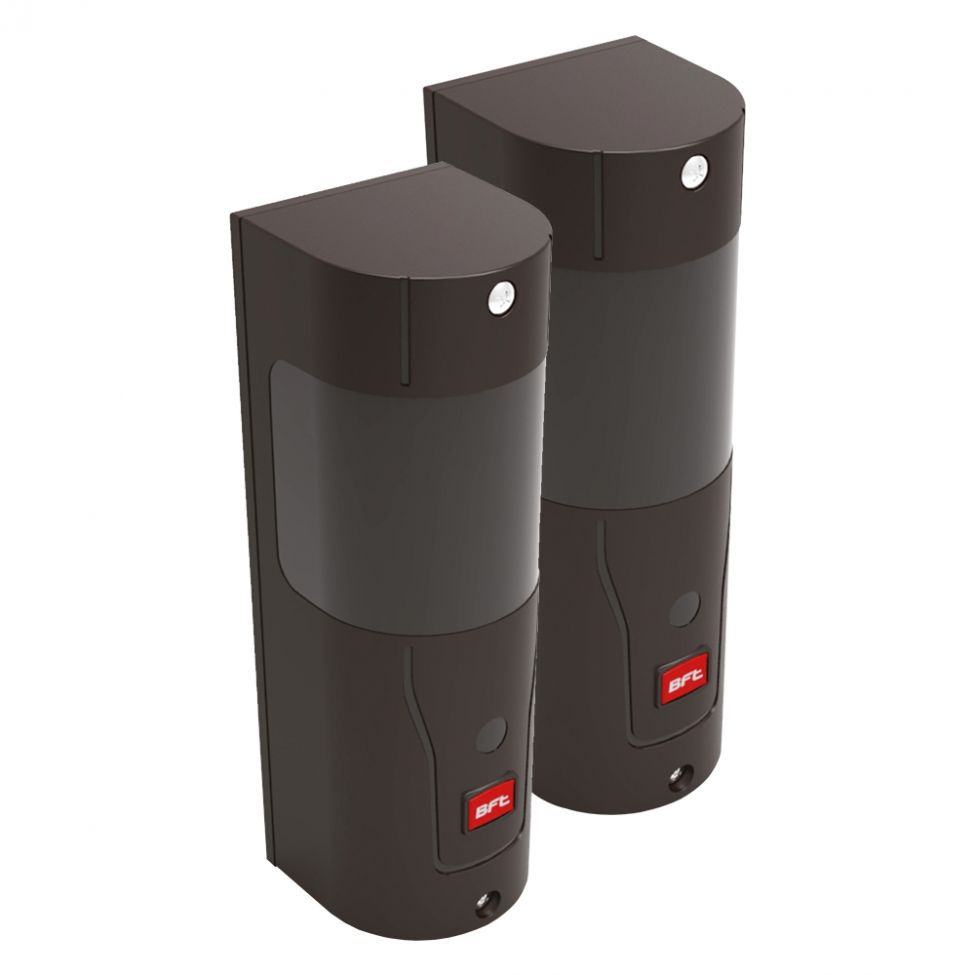

The BFT Akta A30 180° Hardwired Photocells are a pair of adjustable infrared safety sensors designed for automatic swing gates, sliding gates and barrier systems.

Featuring 180° horizontal and 20° vertical adjustment, the Akta photocells offer flexible positioning where gate posts, walls or mounting surfaces are not perfectly aligned. Their adjustable optical heads simplify installation while maintaining accurate beam alignment.

With a maximum operating range of 30 metres and a 24V AC/DC power supply, the BFT Akta A30 photocells provide reliable obstacle detection for residential, commercial and industrial gate automation systems.

Technical Specifications

  • Manufacturer: BFT

  • Model: Akta A30

  • BFT Part Number: P111536

  • SKU: PCELL-AKTA

  • Product Type: Hardwired infrared safety photocells

  • Supply Voltage: 24V AC/DC

  • Maximum Range: 30m

  • Horizontal Adjustment: 180°

  • Vertical Adjustment: 20°

  • Transmitter Current: 12mA

  • Receiver Current: 10mA standby / 15mA maximum

  • Protection Rating: IP55

  • Operating Temperature: -20°C to +55°C

  • Dimensions: 130 × 45 × 43mm

  • Application: Automatic gates and traffic barriers

Kit Includes

  • 1 × BFT Akta A30 infrared transmitter (TX)

  • 1 × BFT Akta A30 infrared receiver (RX)

Useful Information

Unlike the BFT Desme photocells, which offer more limited optical adjustment, the Akta A30 provides a full 180° horizontal adjustment and 20° vertical adjustment, making it particularly useful where mounting positions are offset.

The Akta A30 is a hardwired photocell system. For installations requiring a wireless transmitter, the BFT Eris A30 offers an alternative.

Optional BFT ACV30 protective covers are available separately for installations where additional protection against accidental damage or vandalism is required.

MPN:

PCELL-AKTA

SKU:

PCELL-AKTA
Specification
BrandBFT
SKUPCELL-AKTA
Warranty2 Years
Reviews

Found as is, and was a correct replacement for our existing product
