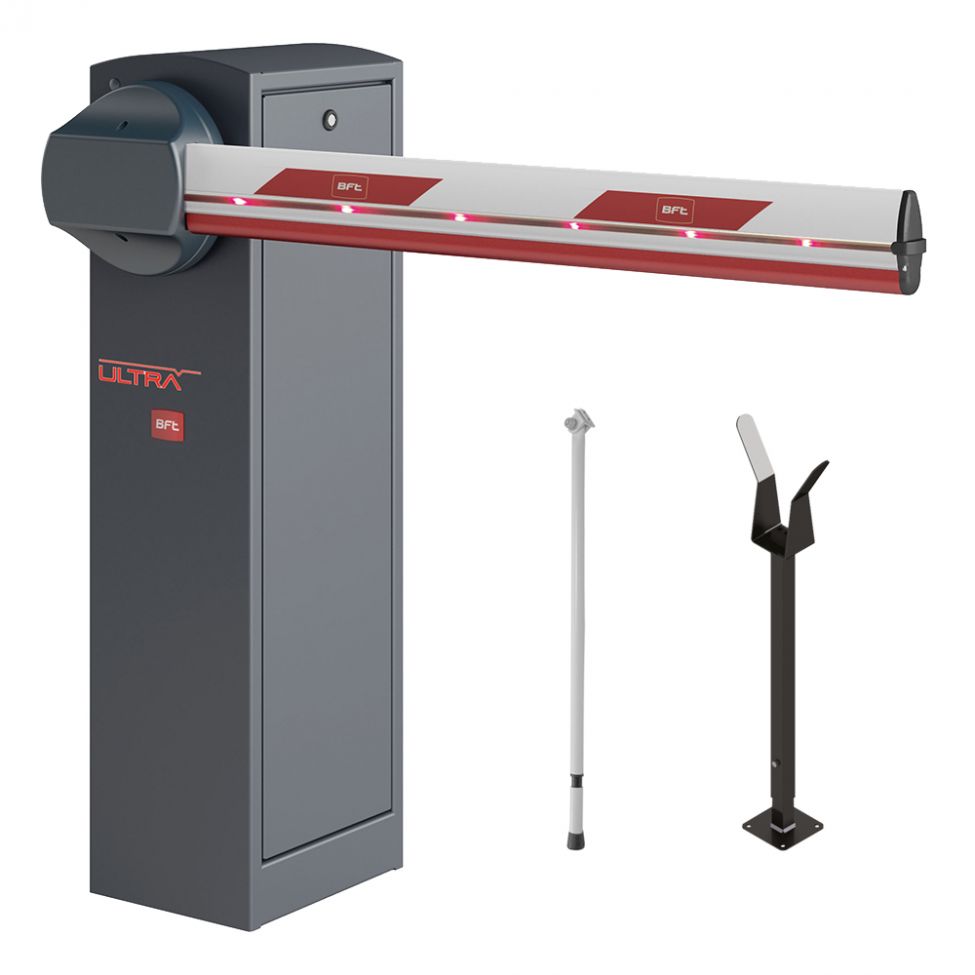

The BFT Maxima Ultra 35 is a high-performance automatic traffic barrier designed for very intensive use at commercial and industrial entrances, car parks, distribution centres and other busy vehicle access points.
Supplied with a 3 metre aluminium boom, the Maxima Ultra 35 provides a reliable solution for controlling vehicle entry and exit. Its electromechanical drive incorporates a three-phase asynchronous motor with an integrated inverter, allowing operation from a 230V single-phase mains supply.
The oil-bath gearbox and connecting rod-crank mechanism provide smooth, controlled movement, with adjustable opening and closing speeds and slowdown at the end of travel. The mechanical drive arrangement also helps protect against forced boom movement.
The integrated BFT CSB Xtreme control panel supports U-Link connectivity for integration with compatible access control and parking management systems. Encoder-based obstacle detection and self-diagnostic functions assist with operation and maintenance.
Designed for very intensive use, the Maxima Ultra 35 supports up to 20,000 movements per day with a 3m boom, making it particularly suitable for high-traffic installations requiring frequent and reliable operation.
Manufacturer: BFT
Model: Maxima Ultra 35
Product Type: Automatic Traffic Barrier Kit
Boom Length: 3 Metres
Suitable Passage Width: Up to 3m, subject to installation configuration
Power Supply: 230V AC Single Phase
Motor Type: Three-Phase Asynchronous Motor with Inverter
Motor Power: 250W
Absorbed Power: 370W
Operating System: Electromechanical
Gearbox: Oil-Bath Lubrication
Opening / Closing Time: 0.7–3 Seconds, Depending on Configuration
Duty Rating: Very Intensive Use
Maximum Operating Frequency: Up to 20,000 Movements per Day with 3m Boom
Control Unit: BFT CSB Xtreme
Obstacle Detection: Encoder-Based
Slowdown: Adjustable During Opening and Closing
Anti-Vandal Protection: Connecting Rod-Crank Mechanism
Locking: Mechanical
Manual Release: Inside Barrier Cabinet
Connectivity: BFT U-Link Compatible
Protection Rating: IP54
Operating Temperature: -30°C to +60°C, Subject to Operating Conditions
Mean Cycles Between Failures (MCBF): 5,000,000 Movements
1 x BFT Maxima Ultra 35 Automatic Barrier Operator
Integrated CSB Xtreme Control Panel and Inverter
1 x 3m Aluminium Barrier Boom
Boom Fixing Bracket
Rubber Boom Buffer
Photocells, induction loops, radio transmitters, access control equipment and additional safety accessories are not included unless specified separately.
The BFT Maxima Ultra 35 is designed for high-frequency commercial applications and supports up to 20,000 movements per day when fitted with a 3m boom.
Although the barrier incorporates a three-phase motor, the integrated inverter allows it to operate from a 230V single-phase mains supply. A separate three-phase electrical supply is not required.
The boom must be correctly balanced for its length and any additional accessories fitted. A fixed boom rest or swinging support leg is not normally required for a standard 3m boom configuration.
Installation requires a suitable concrete foundation, appropriate electrical protection, vehicle detection and safety devices selected following a site-specific risk assessment.
The manufacturer's operating speed range varies according to boom length, balancing arrangement and programmed settings.
| Brand | BFT |
|---|---|
| SKU | Maxima Ultra 35 Kit with 3m boom |
| Model | Maxima Ultra 35 |
| Automation For | Vehicle Barrier |
| Type of Operator | Electromechanical |
| Voltage | 230V |
| Warranty | 2 Years |
