Click Here To Enlarge This Photo Of BFT Maxima Ultra 35 Automatic Traffic Barrier Kit with 4m Boom

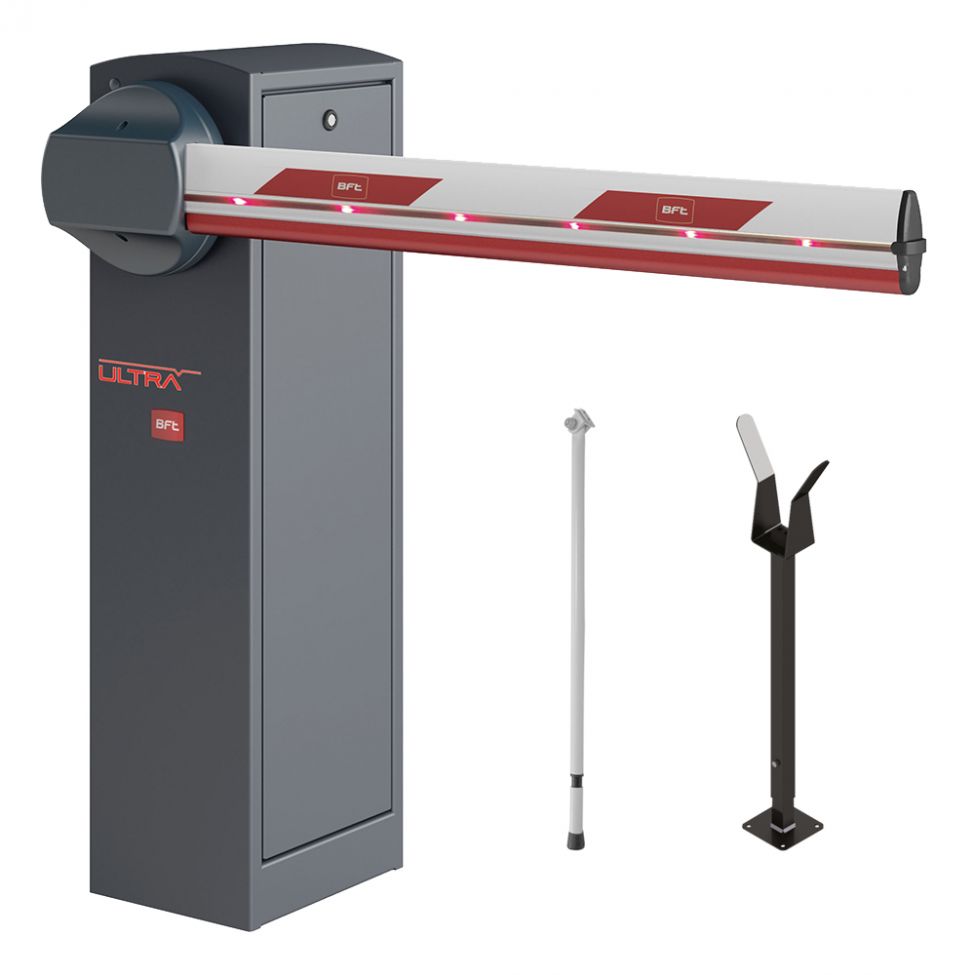

BFT Maxima Ultra 35 Automatic Traffic Barrier Kit with 4m Boom

Add To Favourites
BFT
£2,326.85 Ex. VAT(£2,792.22 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The BFT Maxima Ultra 35 is a high-performance automatic traffic barrier designed for very intensive use at commercial and industrial entrances, car parks, distribution centres and other busy vehicle access points.

Supplied with a 4 metre aluminium boom, the Maxima Ultra 35 provides a reliable solution for controlling vehicle entry and exit. Its electromechanical drive incorporates a three-phase asynchronous motor with an integrated inverter, allowing operation from a 230V single-phase mains supply.

The oil-bath gearbox and connecting rod-crank mechanism provide smooth, controlled movement, with adjustable opening and closing speeds and slowdown at the end of travel. The mechanical drive arrangement also helps protect against forced boom movement.

The integrated BFT CSB Xtreme control panel supports U-Link connectivity for integration with compatible access control and parking management systems. Encoder-based obstacle detection and self-diagnostic functions assist with operation and maintenance.

Designed for very intensive use, the Maxima Ultra 35 supports up to 10,000 movements per day with a 4m boom, making it particularly suitable for high-traffic installations requiring frequent and reliable operation.

Key Specifications

  • Manufacturer: BFT

  • Model: Maxima Ultra 35

  • Product Type: Automatic Traffic Barrier Kit

  • Boom Length: 4 Metres

  • Suitable Passage Width: Up to 4m, subject to installation configuration

  • Power Supply: 230V AC Single Phase

  • Motor Type: Three-Phase Asynchronous Motor with Inverter

  • Motor Power: 250W

  • Absorbed Power: 370W

  • Operating System: Electromechanical

  • Gearbox: Oil-Bath Lubrication

  • Opening / Closing Time: 0.7–3 Seconds, Depending on Configuration

  • Duty Rating: Very Intensive Use

  • Maximum Operating Frequency: Up to 10,000 Movements per Day with 4m Boom

  • Control Unit: BFT CSB Xtreme

  • Obstacle Detection: Encoder-Based

  • Slowdown: Adjustable During Opening and Closing

  • Anti-Vandal Protection: Connecting Rod-Crank Mechanism

  • Locking: Mechanical

  • Manual Release: Inside Barrier Cabinet

  • Connectivity: BFT U-Link Compatible

  • Protection Rating: IP54

  • Operating Temperature: -30°C to +60°C, Subject to Operating Conditions

  • Mean Cycles Between Failures (MCBF): 5,000,000 Movements

What's Included

  • 1 x BFT Maxima Ultra 35 Automatic Barrier Operator

  • Integrated CSB Xtreme Control Panel and Inverter

  • 1 x 4m Aluminium Barrier Boom

  • Boom Fixing Bracket

  • Rubber Boom Buffer

Boom rests, swinging support legs, photocells, induction loops, radio transmitters, access control equipment and additional safety accessories are not included unless specified as part of the selected kit.

Installer Note

The BFT Maxima Ultra 35 is designed for high-frequency commercial applications and supports up to 10,000 movements per day when fitted with a 4m boom.

The correct balancing spring and boom accessories must be selected according to the final installation configuration. A fixed boom rest or swinging support leg may be required depending on the entrance layout and additional boom accessories.

Although the barrier uses a three-phase motor, the integrated inverter allows it to operate from a 230V single-phase mains supply. A separate three-phase electrical supply is not required.

Installation requires a suitable concrete foundation, appropriate electrical protection, vehicle detection and safety devices selected following a site-specific risk assessment.

The manufacturer's operating speed range varies according to boom length, balancing arrangement and programmed settings.

MPN:

Maxima Ultra 35 Kit with 4m boom

SKU:

Maxima Ultra 35 Kit with 4m boom
Specification
BrandBFT
SKUMaxima Ultra 35 Kit with 4m boom
ModelMaxima Ultra 35
Automation ForVehicle Barrier
Type of OperatorElectromechanical
Voltage230V
Warranty2 Years
