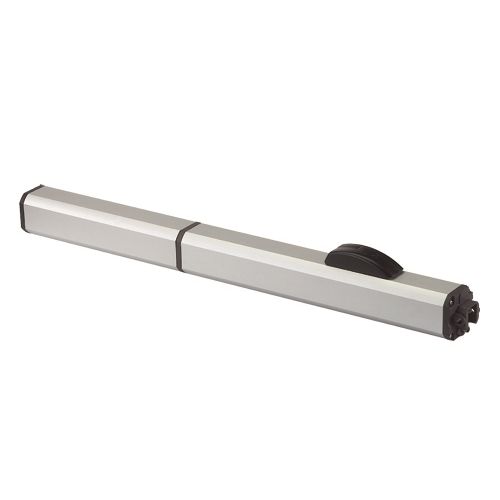

Click Here To Enlarge This Photo Of FAAC 400 CBACR 230V Hydraulic Swing Gate Operator – 104207

FAAC 400 CBACR 230V Hydraulic Swing Gate Operator – 104207

Add To Favourites
FAAC
£938.00 Ex. VAT(£1,125.60 Inc. VAT)

In Stock

(From 0 Reviews)

Description

The FAAC 400 CBACR is a fast-operating 230V hydraulic swing gate motor designed for residential, commercial and industrial gates up to 2.2 metres per leaf.

Part of FAAC's established 400 hydraulic operator range, the CBACR features a faster operating speed than the standard 400 CBAC, making it particularly suitable for entrances where reduced gate opening and closing times are required.

The CBACR provides hydraulic locking in both the open and closed positions, helping to hold the gate securely without a separate electric lock under normal operating conditions.

Its hydraulic drive delivers smooth, controlled movement, while adjustable bypass valves allow the operating force to be regulated during commissioning. A key-protected manual release enables manual operation during a power failure.

Suitable for new installations or replacing an existing FAAC 400 CBACR hydraulic gate motor, part number 104207.

Key Specifications

  • Manufacturer: FAAC

  • Model: 400 CBACR

  • Part Number / SKU: 104207

  • Operator Type: Hydraulic Linear Swing Gate Operator

  • Power Supply: 230V AC, 50Hz

  • Maximum Gate Leaf Length: 2.2m

  • Minimum Gate Leaf Length: 1.1m

  • Hydraulic Locking: Opening and Closing

  • Motor Power: 220W

  • Maximum Thrust: 4,650N

  • Effective Rod Stroke: 260mm

  • Rod Speed: 15mm/second

  • Pump Flow Rate: 1.5 litres/minute

  • Maximum Opening Angle: 125°

  • Capacitor Specification: 8µF / 400V

  • Protection Rating: IP55

  • Operating Temperature: -20°C to +55°C

  • Operator Weight: Approximately 8.6kg

  • Manual Release: Key-protected

What's Included

- 1 x FAAC 400 CBACR 230V Hydraulic Swing Gate Operator (104207)

Installer Note

The FAAC 400 CBACR is the faster version of the standard FAAC 400 CBAC, with a higher hydraulic pump flow rate and reduced operating time.

Although both models feature hydraulic locking in opening and closing, the CBACR has a lower maximum thrust force. Check the existing operator identification label and gate requirements before selecting a replacement.

The maximum gate leaf length of 2.2 metres is subject to gate weight, construction, hinge arrangement and wind exposure. The faster operating speed must also be considered when selecting and commissioning the required safety devices.

This listing is for the individual hydraulic operator, not a complete automation kit. Control boards, photocells, receivers and remote controls are available separately.

MPN:

104207

SKU:

104207
Specification
BrandFAAC
SKU104207
Model400
Automation ForSwing Gate
OperatorArm
Type of OperatorHydraulic
Voltage230V
Max. Width of Gate (m)2.2m
Warranty3 Years
