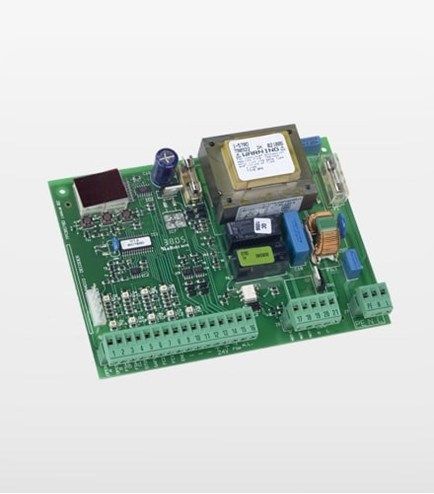

FAAC 578D Electronic Control Unit

£225.37 £187.81
In stock
FAAC 578D Electronic Control Unit at the best price online. Call for trade prices.

FAAC 578D Control board, Electronic Control Unit

Part No: 790922

Technical Specifications

Technical Specifications

    578 D (for remote application)
Transformer   Integrated
Power supply voltage   230 Vac (+6% -10%) 50 (60) Hz
Absorbed power   10 W
Motor max. load   1000 W
Accessories max. load   0.5 A
Operating ambient temperature   -20 °C to +55 °C
Protection fuses   2
Function logics   Automatic/"Stepped" Automatic/Semi-automatic/ "Stepped" semi-automatic/Safety/Semi-automatic B/"Dead man" C/ B/C mixed logic
Work time   Programmable (0 to 4 min)
Pause time   Programmable (0 to 4 min)
Thrust power   Adjustable on 50 levels
Terminal board inputs   Open - Partial open - Opening safety devices - Closing safety devices - Stop - Edge - Power supply & earth - Opening and closing limit switches
Connector inputs   /
Terminal board outputs   Flashing lamp/Motor/24Vdc Accessories power supply /24Vdc Indicator light 24Vdc / Timed output / Electric lock control / Traffic light / Failsafe
Rapid connector   5-pin fitting for Minidec cards, Decoder or RP receivers
Programming   3 keys (+,-,F) and display, "basic" and "advanced" mode
"Basic" mode programmable functions   Function logics - Pause time - Thrust power - Opening/closing direction
"Advanced" mode programmable functions   Torque at initial thrust - Brake - Failsafe - Pre-flashing - Indicator light/Timed output / Electric lock at opening and closing / Logic for safety devices at opening and closing - Encoder / Anti-crushing sensitivity - Decelerations - Partial opening time - Work time - Service request - Cycle counter
Status signalling   On display
Enclosure compatibility   Mod. E - L - LM
