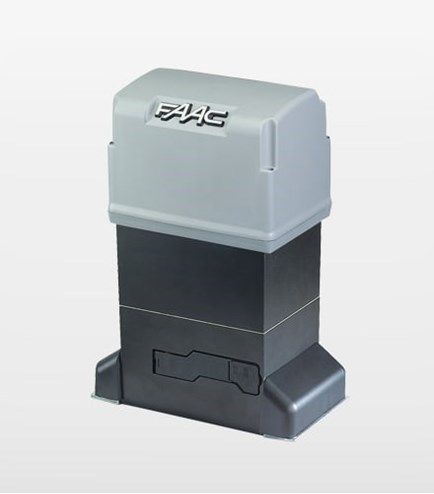

The FAAC 844 R Z12 is a heavy-duty 230V electromechanical sliding gate operator designed for commercial and industrial gates weighing up to 1000kg. Its reversible gearbox allows the gate to be moved manually when the motor is not operating, making it suitable for installations requiring free manual movement.
Unlike the non-reversing FAAC 844 models, the reversible design does not mechanically lock the gate in position. A separate electric lock is therefore required to secure the gate when closed.
The operator features an adjustable twin-disc oil-bath clutch for mechanical force adjustment, providing dependable performance in demanding applications. The Z12 Module 4 pinion delivers a gate travel speed of approximately 11.6 metres per minute, while magnetic limit switches provide accurate opening and closing positions.
Designed for semi-intensive commercial use, the FAAC 844 R Z12 can be connected to a compatible external control board to provide the required operating functions and safety device connections.
Manufacturer: FAAC
Model: 844 R Z12 Reversible
Product Code: 109897
Power Supply: 230V AC
Maximum Gate Weight: 1000kg
Maximum Gate Length: 48m
Gate Speed: 11.6m/min
Motor Power: 550W
Maximum Thrust: 680N
Maximum Torque: 18Nm
Motor Speed: 750rpm
Pinion: Z12 Module 4
Gearbox: Reversible
Clutch: Adjustable twin-disc oil-bath
Limit Switches: Magnetic
Duty Cycle: 70%
Control Board: Separate, compatible FAAC control board required
Protection Rating: IP44
Operating Temperature: -20°C to +55°C
Motor Weight: 15kg
Application: Commercial and industrial sliding gates
| Brand | FAAC |
|---|---|
| SKU | 109897 |
| Model | 844 |
| Automation For | Sliding Gate |
| Operator | Gearmotor |
| Type of Operator | Electromechanical |
| Voltage | 230V |
| Max. Weight of Gate | 1000KG |
| Warranty | 3 Years |
