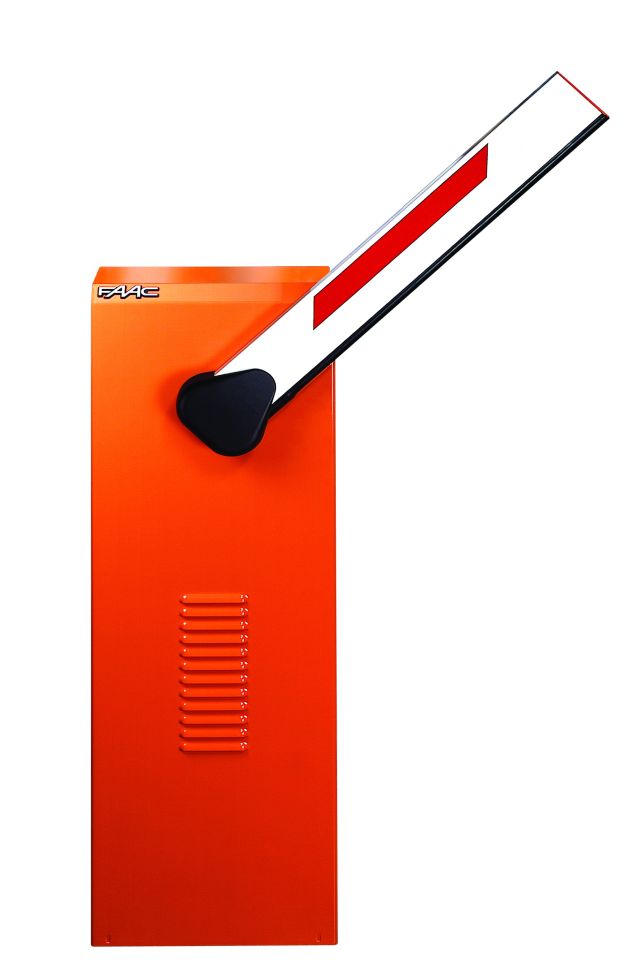

The FAAC 620 Standard is a hydraulic automatic traffic barrier designed for controlling vehicle access at commercial premises, industrial sites, car parks and residential developments.
Supplied with a 5 metre aluminium beam, the FAAC 620 Standard provides a robust solution for managing vehicle entry and exit across wider entrances. Its hydraulic drive system is designed for frequent operation, making it suitable for busy access points where reliability and durability are important.
The hydraulic mechanism provides smooth, controlled beam movement, with adjustable force and slowdown to reduce mechanical stress during operation. Hydraulic locking holds the beam in position when the barrier is not operating.
The integrated FAAC 624 BLD control board offers programmable operating functions and supports connection to compatible access control equipment, safety photocells, induction loops and other vehicle detection devices.
Unlike the FAAC 620 Rapid, which is designed for faster operation over shorter beam lengths, the 620 Standard is suited to wider entrances requiring a longer barrier beam.
Manufacturer: FAAC
Model: 620 Standard
Product Type: Automatic Hydraulic Traffic Barrier Kit
Beam Length: 5 Metres
Maximum Passage Width: Up to 5m, subject to installation configuration
Power Supply: 230V AC, 50/60Hz
Motor Type: Single-Phase Electric Motor
Operating System: Hydraulic
Opening Time: Approximately 3–4 Seconds, Depending on Configuration
Duty Rating: Intensive Use
Hydraulic Locking: Opening and Closing
Control Board: FAAC 624 BLD
Beam Type: Aluminium Barrier Beam
Manual Release: Integrated
Protection Rating: IP44
Operating Temperature: -20°C to +55°C
Application: Commercial and Industrial Vehicle Access Control
1 x FAAC 620 Standard Hydraulic Barrier Operator
Integrated FAAC 624 BLD Control Board
1 x 5m Aluminium Barrier Beam
Beam Fixing Bracket
Suitable Balancing Spring
Photocells, induction loops, radio transmitters, access control equipment, traffic lights and additional safety accessories are not included unless specified separately.
The FAAC 620 Standard is designed for commercial vehicle access installations requiring a barrier beam up to 5 metres long.
The hydraulic system provides controlled movement and hydraulic locking, while the integrated manual release allows the beam to be operated manually during a power failure.
The barrier must be correctly balanced using the appropriate spring for the 5m beam and any additional accessories fitted.
A fixed beam rest or swinging support leg may be required depending on the installation configuration and additional beam accessories.
Installation requires a suitable concrete foundation, appropriate electrical protection, vehicle detection and safety devices selected following a site-specific risk assessment.
The stated opening time is approximate and may vary depending on the beam length, balancing arrangement and operating conditions.
| Brand | FAAC |
|---|---|
| SKU | 620 S 5M KIT |
| Model | 620 |
| Automation For | Vehicle Barrier |
| Type of Operator | Hydraulic |
| Voltage | 230V |
| Warranty | 3 Years |
