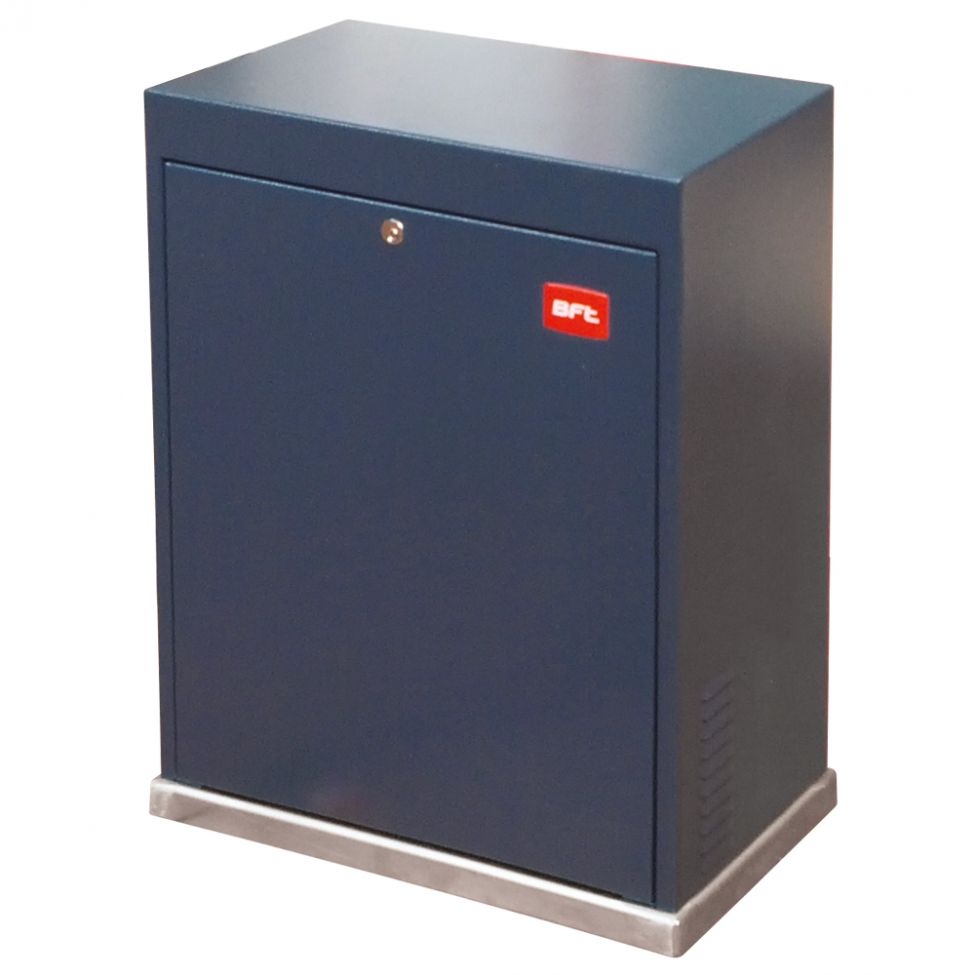

The BFT Oberon is a heavy-duty, high-speed sliding gate operator designed for large commercial and industrial gates weighing up to 2,000kg.
Unlike conventional three-phase operators, the Oberon operates from a 230V single-phase mains supply, using an integrated inverter to drive its 400V three-phase motor. This makes it particularly suitable for installations requiring the performance of a three-phase motor where a three-phase mains supply is unavailable.
Designed for very intensive applications, the Oberon features adjustable opening and closing speeds, an integrated SIRIO C BA control unit and a galvanised steel casing. Its electronic braking system provides controlled stopping, particularly important on large, heavy sliding gates.
The Oberon is suitable for demanding installations such as industrial entrances, commercial premises and high-traffic access points where speed, power and reliable operation are essential.
Manufacturer: BFT
Model: Oberon
Product Code: OBERON
Operator Type: Electromechanical Sliding Gate Gearmotor
Maximum Gate Weight: 2,000kg
Mains Power Supply: 220–230V AC, Single Phase, 50/60Hz
Motor Supply: 400V Three Phase via Integrated Inverter
Motor Power: 750W (0.75kW)
Maximum Opening Speed: 39 metres per minute, adjustable
Maximum Closing Speed: 25 metres per minute, adjustable
Control Panel: BFT SIRIO C BA
Impact Reaction: Electromechanical Brake and Clutch
Maximum Gate Travel: 20 metres
Pinion: Module 4, 25 Teeth
Gearbox Lubrication: Oil
Manual Release: Mechanical
Protection Rating: IP24
Operating Temperature: -10°C to +50°C
Duty Classification: Very Intensive Use
Operator Weight: Approximately 60kg
Casing: Galvanised Steel
1 x BFT Oberon 2000kg Sliding Gate Gearmotor
Integrated SIRIO C BA Control Unit
Integrated Inverter and Braking System
Built-In Limit Switch Assembly
Manual Release Mechanism
The BFT Oberon requires a 230V single-phase mains supply. Its integrated inverter operates the three-phase motor internally, so a dedicated 400V three-phase mains supply is not required.
The operator is designed for rack-driven sliding gates and must be installed on a suitable foundation with correctly aligned rack and pinion.
Although rated for gates up to 2,000kg, the appropriate operating speed must be selected according to gate weight, travel distance, installation conditions and the manufacturer's instructions.
Due to the high operating speeds available, particular attention must be given to gate stability, mechanical stops, safety edges, photocells and the overall risk assessment.
The Oberon is supplied as an individual gearmotor, not a complete sliding gate automation kit. Gate rack, external safety devices, radio controls and other installation accessories should be selected separately.
| Brand | BFT |
|---|---|
| SKU | OBERON |
| Model | Oberon |
| Automation For | Sliding Gate |
| Operator | Gearmotor |
| Type of Operator | 3 Phase |
| Voltage | 230V 400V |
| Max. Weight of Gate | 2000KG |
| Warranty | 2 Years |
