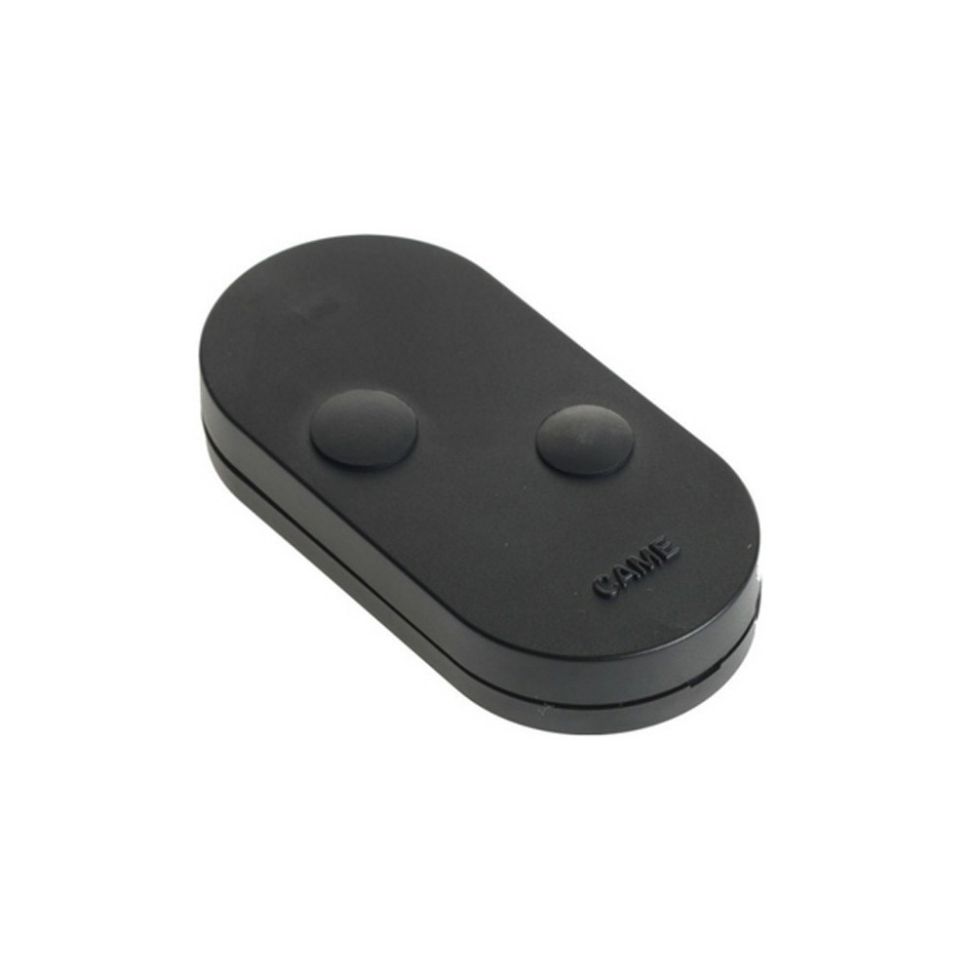

CAME 806TS-0092 TOPD2FKS Fixed Code 2-Channel Transmitter

Description

The CAME 806TS-0092 TOPD2FKS is a 2-channel fixed code transmitter for compatible CAME gate, barrier and access automation systems.

Operating on both 433.92MHz and 868.35MHz frequencies, the TOPD2FKS provides a practical replacement or additional remote for compatible CAME installations. The two buttons provide two independent channels, allowing separate automation commands to be controlled where the system has been configured accordingly.

The transmitter supports CAME TOP and TAM fixed code systems and features self-learning programming. Its compact black polycarbonate casing is designed for everyday use and is powered by a CR2032 lithium battery.

This is the fixed code version of the CAME TOP dual-frequency transmitter, so the coding system of the existing receiver or transmitter should be checked before ordering.

Key Specifications

Manufacturer: CAME
Model: TOPD2FKS
Product Code: 806TS-0092
Product Type: Fixed code transmitter
Channels: 2
Frequency: 433.92MHz / 868.35MHz
Code Type: Fixed code
Programming: Self-learning
TOP Combinations: 4,096
TAM Combinations: 16,777,216
Colour: Black
Material: Polycarbonate
Battery: 1 x CR2032 lithium
Radio Range: Up to 50–150m depending on installation conditions
Dimensions: 34 x 70 x 13mm
Operating Temperature: -20°C to +55°C

What's Included

1 x CAME 806TS-0092 TOPD2FKS 2-Channel Transmitter
1 x CR2032 Battery

Installer Note

The 806TS-0092 TOPD2FKS uses fixed code technology. Check the existing CAME receiver and transmitter coding system before ordering, particularly on installations using rolling code transmitters.
