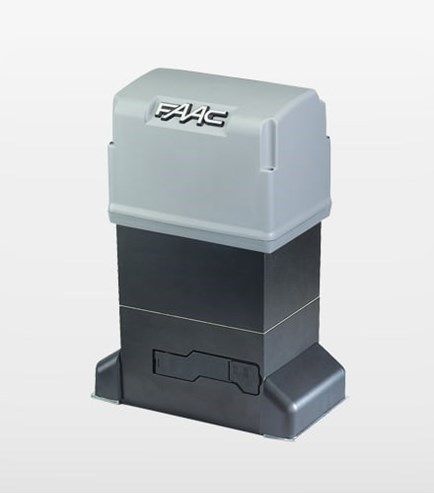

The FAAC 844 R 3PH is a heavy-duty three-phase electromechanical sliding gate gearmotor designed for industrial and commercial sliding gates weighing up to 1,600kg. Built for demanding installations, it provides reliable operation for large gates requiring a robust, high-performance drive system.
Featuring an oil-bath lubricated gearbox and adjustable twin-disc clutch, the FAAC 844 R 3PH is engineered for durability and consistent operation. Its reversible transmission allows the gate to be moved manually when the motor is not operating, making it suitable for installations where manual movement is required.
The three-phase motor is designed for use with a compatible external control panel, allowing installers to configure the required operating functions and safety devices.
The FAAC 844 R 3PH is suitable for industrial premises, commercial entrances and other heavy-duty sliding gate applications.
Manufacturer: FAAC
Model: 844 R 3PH
Product Code: 109896
Power Supply: 400V AC three-phase
Maximum Gate Weight: 2,200kg (Z12) / 1,600kg (Z16)
Gate Speed: 7.2m/min (Z12) / 9.5m/min (Z16)
Motor Power: 950W
Maximum Torque: 62Nm
Motor Speed: 1,400rpm
Reduction Ratio: 1:30
Control Board: External, supplied separately
Pinion: Supplied separately
Limit Switches: Inductive
Clutch: Adjustable twin-disc oil-bath
Gearbox: Non-reversing
Use Frequency: 70%
Protection Rating: IP44
Operating Temperature: -20°C to +55°C
Dimensions: 275 × 191 × 387mm
Weight: 15kg
Application: Industrial and commercial sliding gates
| Brand | FAAC |
|---|---|
| SKU | 109896 |
| Model | 844 |
| Automation For | Sliding Gate |
| Operator | Gearmotor |
| Type of Operator | 3 Phase |
| Voltage | 400V |
| Max. Weight of Gate | 2200KG |
| Warranty | 3 Years |
