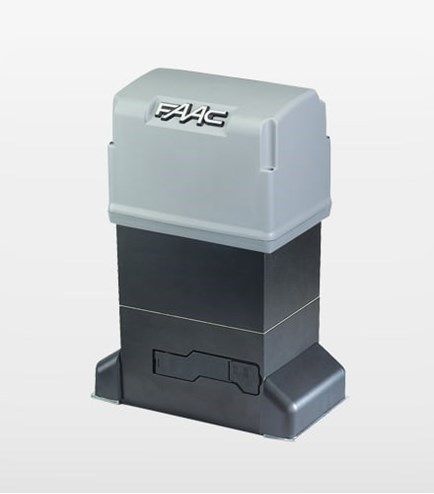

The FAAC 844 R is a heavy-duty 230V electromechanical sliding gate gearmotor designed for commercial and industrial sliding gates weighing up to 1000kg. Its reversible gearbox allows the gate to be moved manually when the motor is not operating, making it suitable for installations requiring free manual movement.
Unlike the standard non-reversing FAAC 844 operators, the 844 R does not mechanically lock the gate when stationary. A separate locking system is therefore required where the gate needs to remain secured.
The motor features an oil-bath lubricated gearbox and adjustable twin-disc clutch, providing durable operation and mechanical force adjustment. Its robust construction makes it suitable for demanding installations where reliable gate movement is essential.
Designed for use with a compatible external FAAC control board, the 844 R can be integrated with appropriate safety devices and access control equipment.
Manufacturer: FAAC
Model: 844 R
Product Code: 109838 (legacy), 109926 (replacement listing)
Power Supply: 230V AC
Maximum Gate Weight: 1000kg
Maximum Gate Length: 48m
Gate Speed: 11.6m/min with Z12 pinion
Motor Power: 550W
Maximum Thrust: 680N with Z12 pinion
Maximum Torque: 18Nm
Motor Speed: 750rpm
Gearbox: Reversible
Clutch: Adjustable twin-disc oil-bath
Limit Switches: Inductive
Duty Cycle: 70%
Control Board: Not included
Pinion: Not included
Protection Rating: IP44
Operating Temperature: -20°C to +55°C
Motor Weight: 15kg
Application: Commercial and industrial sliding gates
| Brand | FAAC |
|---|---|
| SKU | 109838 |
| Model | 844 |
| Automation For | Sliding Gate |
| Operator | Gearmotor |
| Type of Operator | Electromechanical |
| Voltage | 230V |
| Max. Weight of Gate | 1800KG |
| Warranty | 3 Years |
