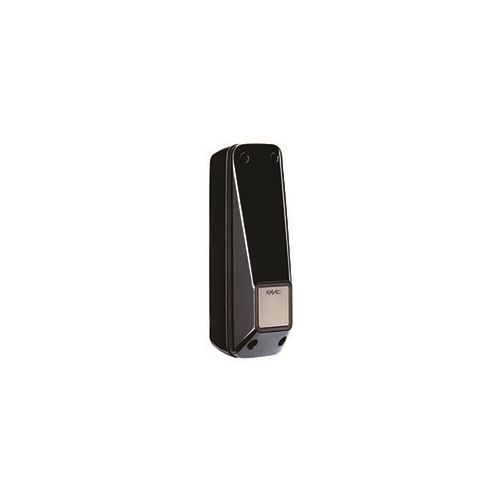

FAAC XP20D Wired Safety Photocells
System with traditional 24V transmitter and receiver power supply.
Power supply: 24Vdc/24Vac
Nominal capacity: 20 m
Installation: wall and column
Dimensions: 41.5 x 130 x 42.5mm
Horizontal mechanical adjustment angle: -90° +90°
Vertical optical auto-alignment angle: ±7° (20m) ±13.5° (5m)
Obstacle detection time: 13ms
Absorption power: Rx (30mA) + Tx (20mA)
Protection rating: IP54
Type of contact: N.C.
Max capacity of the contact: 60VA/24W
Operating ambient temperature: -20°C ÷ +55°C
|Department||Safety Devices , Photocells|
